ANSON Variable Displacement VP5F Vane Single Pumps VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S

Brand Name : ANSON

Model Number : VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S VP5F-A4-50 VP5F-A3-50S VP5F-A3-50 VP5F-B5-50S VP5F-B5-50 VP5F-B4-50S VP5F-B4-50 VP5F-B3-50S VP5F-B3-50

Place of Origin : China Taiwan

MOQ : 1

Price : 35-55USD

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 500 pcs per week

Delivery Time : 3-12working days

Packaging Details : poly bags, box, cartons, pallets

Standard Pressure : 103.5 Bar (1500 PSI) AC 207 Bar (3000 PSI) DC

Body Material : Carbon Steel

Shift Type : Soft

Mounting type : Flange

Outlet flow : 8-40L/min

Pressure range : 8-70Bar

Shafts : Woodruff key 8(12), 15-40 Splined Shafts

Splined Standard : ANSI B92.1 CLASS 5

Contact Now

ANSON Variable Displacement VP5F Vane Single Pumps VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S

Ordering Codes:

VP5F-A5-50S VP5F-A5-50 VP5F-A4-50S
VP5F-A4-50 VP5F-A3-50S VP5F-A3-50
VP5F-B5-50S VP5F-B5-50 VP5F-B4-50S
VP5F-B4-50 VP5F-B3-50S VP5F-B3-50

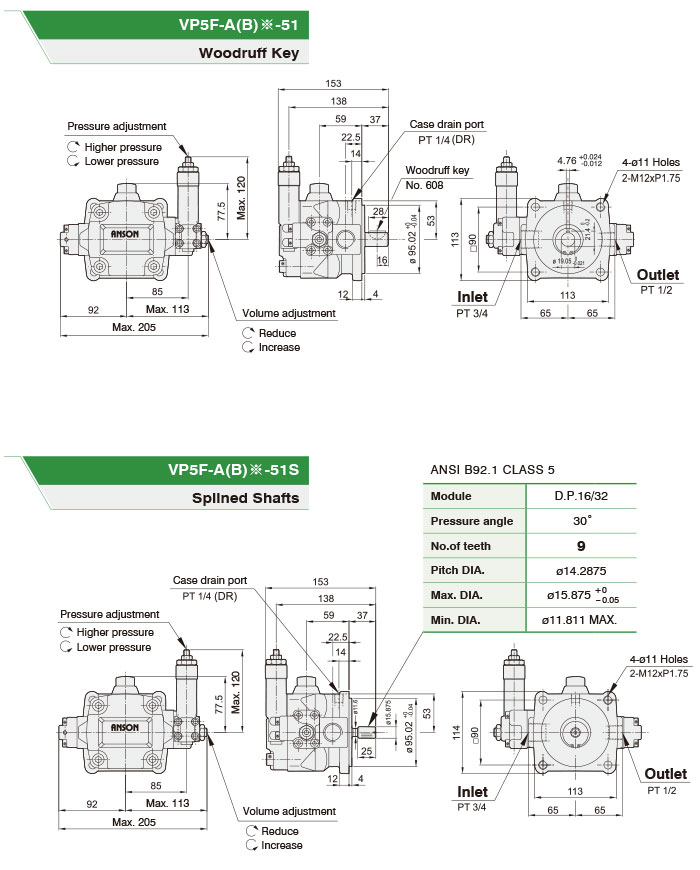

VP5F -A 5 -51 S
Code Outlet flow Operating pressure range Design Shafts code
Frame size (at 3.5bar,1800 r/min)
A B Code Pressure range
Outlet Flow L/min Outlet Flow L/min (bar)
(Geometric displacement cm3/rev) (Geometric displacement cm3/rev)
VP5F 30 (16) 40 (22) 2 15~35 51 Omit:
Woodruff key (VP5)
Straight key (VP6~7)
VP6F 54 (30) 70 (39) 3 20~70
VP7F 120 (67) - 4 50~105
F: Factory setting Q max. 5 70~140 S:
Flange mounting Factory setting P min. Splined Shaft
