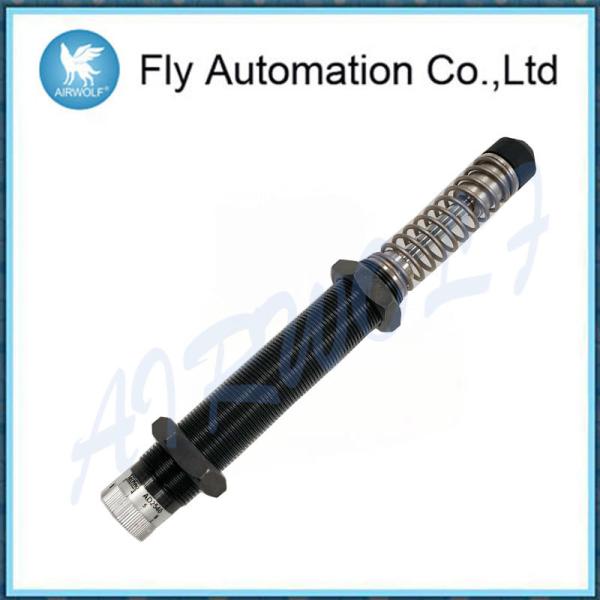

Airtac Length 240 mm AD2540 Carbon steel Hydraulic Shock Absorber Buffering
Function of Hydraulic Shock Absorber
1.It enhances the productivity: As shock absorber can smoothly stop the impaction, therefore it greatly enhancesthe production efficiency of the machine and equipment in HF and high speed operation.
2.It prolongs the mechanical life: As the buffer absorbs the impaction energy, it greatly reduces the impact and shockof kinetic object to the machine. It avoids the mechanical damage due to any impact I shock. It reduces the repaircost, prolongs the service life of the machine, brings about less after sale services.
3. It enhances the product quality: As the buffer removes the shocking noise and destructive impact by the impaction,it brings about the smooth machine I equipment operation. Therefore it naturally enhances the product quality.
4.It greatly reduces the noise, offers a peaceful operating environment.
5.It enhances the safety of mechanical operation.
Application range of Hydraulic Bumper
1.Mechanical arm, take-out arm, feeding equipment, screen printer, pad printer, conveyor, carrying machinery,electronic machinery.
2.Car and locomotive manufacture industry, carpentry, construction machinery, aviation and traffic machinery.
3.Civil defense military, medical treatment equipment, medi-care sanitation and hygiene equipment, environmentprotection equipment.
4.Laboratory, teaching equipment, machine tool, food packaging machinery, rubber and plastic machinery.
Specification
| Model | Stroke(mm) | Every time Max.absorbing energy E (Nm) | Hour Max. absorbing energy Ec (Nm/hr) | Max.impact speed (m/s) | Working temperature(℃) | Weight/Kg |
| AD1412 | 12 | 20 | 24000 | 3.2 | -10 ~+85 | 0.09 |
| AD1416 | 16 | 22 | 26400 | 3.2 | -10 ~+85 | 0.09 |
| AD2020 | 20 | 39 | 30000 | 3.6 | -10 ~+85 | 0.23 |
| AD2030 | 30 | 40 | 35000 | 3.6 | -10 ~+85 | 0.245 |
| AD2525 | 25 | 85 | 51000 | 3.6 | -10 ~+85 | 0.35 |
| AD2540 | 40 | 100 | 84000 | 3.6 | -10 ~+85 | 0.455 |
| AD3625 | 25 | 150 | 90000 | 3.2 | -10 ~+85 | 0.955 |
| AD3650 | 50 | 300 | 108000 | 3.2 | -10 ~+85 | 1.1 |

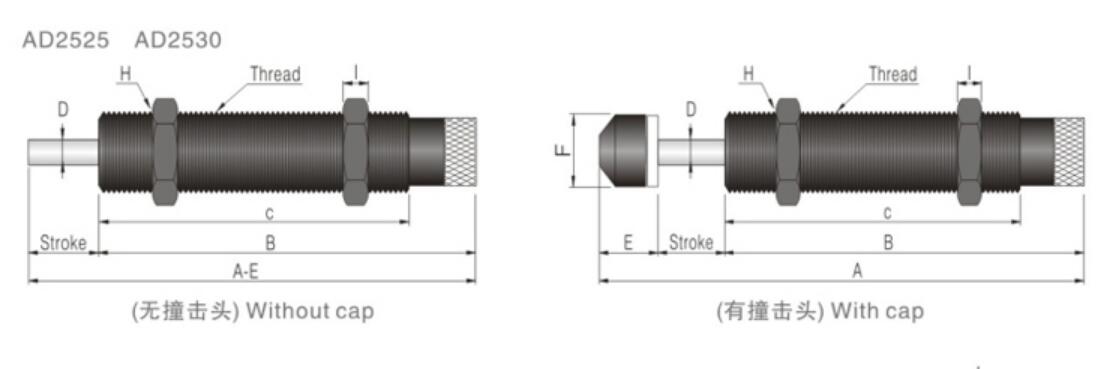

Structure
Attention
1.It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
2.It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.
3.Do not burn: because the product is hydraulic oil, put into the fire will lead to fire or cause accidents.
4.It is strictly prohibited to use in vacuum and high pressure environment, otherwise it will damage the machine
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
