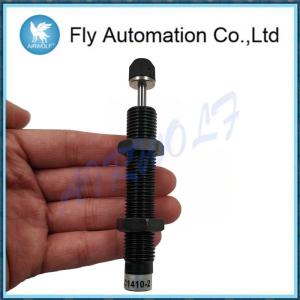

Airtac type Self-compensation shock absorber AC1410-2 with black plastic cap Oil Buffer
Description
The AC series Self-compensation shock absorber are designed with high hardness stainless steel shaft, the shock absorber has better impact and corrosion resistance, and it can work under adverse conditions. The compact structure leads to high max. absorbed energy, and the special oiling process leads to stable shock absorbing. The outer body of integrated structure is treated by QPQ, which has optimum corrosion and wear resistance and can withstand high pressure; it is easy to install and adjust for all threaded outer body which has good heat dissipation.
Application
It is suitable for the fields of manipulator, pneumatic cylinder, Conveyor Systems, Factory Automation, medical instruments etc.
Ordering Code
Principle
When piston rod is impacted, it will drive piston to press oil in inner tube. Oil will be pressed out through orifice holes of inner tube. At the same time, the oil returns to inner tube through returning hole of inner tube.
After outside force vanishes, spring makes piston rod immediately return to its position. Oil will return to inner tube through check valve. Then shock absorber will return to be ready position waiting for next action.
Features
1. Excellent and stable deceleration and shock absorbing; if impacted by load, the resistance will automatically adjust.
2. Outer body of integrated structure is treated by QPQ, which has optimum corrosion and wear resistance and can withstand high pressure; it is easy to install and adjust for all threaded outer body which has good heat dissipation.
3. With high hardness stainless steel shaft, the shock absorber has better impact and corrosion resistance, and it can work under adverse conditions.
4. Special oiling process leads to stable shock absorbing.
5. Compact structure and high max. absorbed energy.
6. We use Special lubricants as buffer medum, which adapts to wide temperature range and ensures stable cushioning.
| Model | Stroke (mm) | Max. Impact Speed (m/s) |
| AC1410-2 | 10 | 2 |
| AC1420-2 | 20 | 2 |
| AC1425-2 | 25 | 2 |
| AC2020-2 | 20 | 2 |
| AC2030-2 | 30 | 2 |
| AC2050-2 | 50 | 2 |
| AC2525-2 | 25 | 2 |
| AC2550-2 | 50 | 2 |
| AC3660-2 | 60 | 2 |
