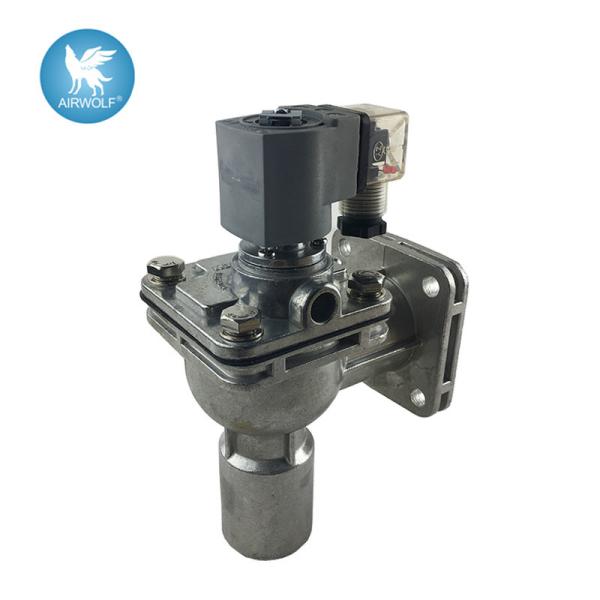

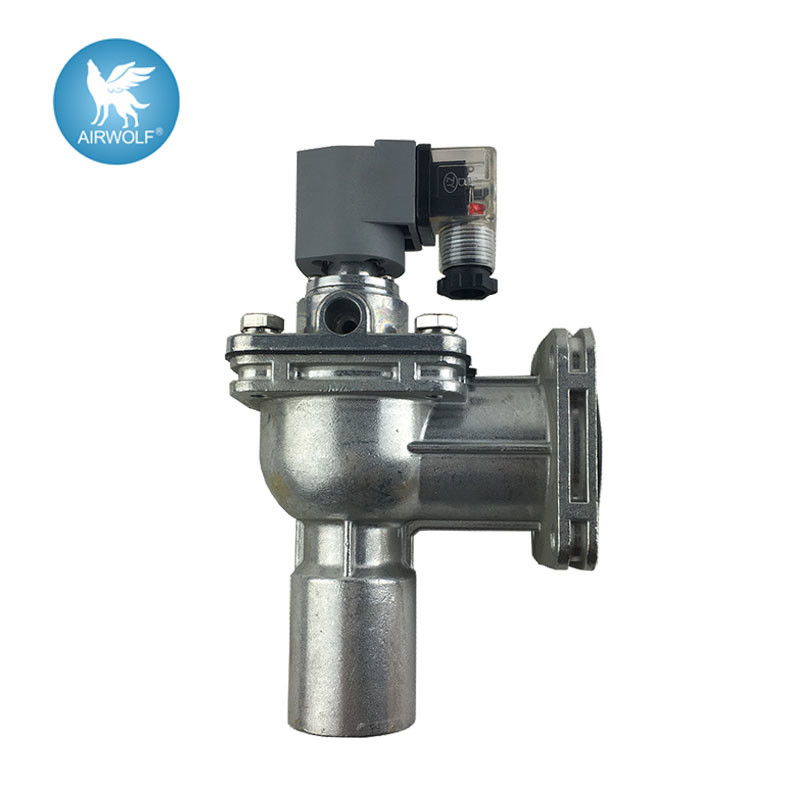

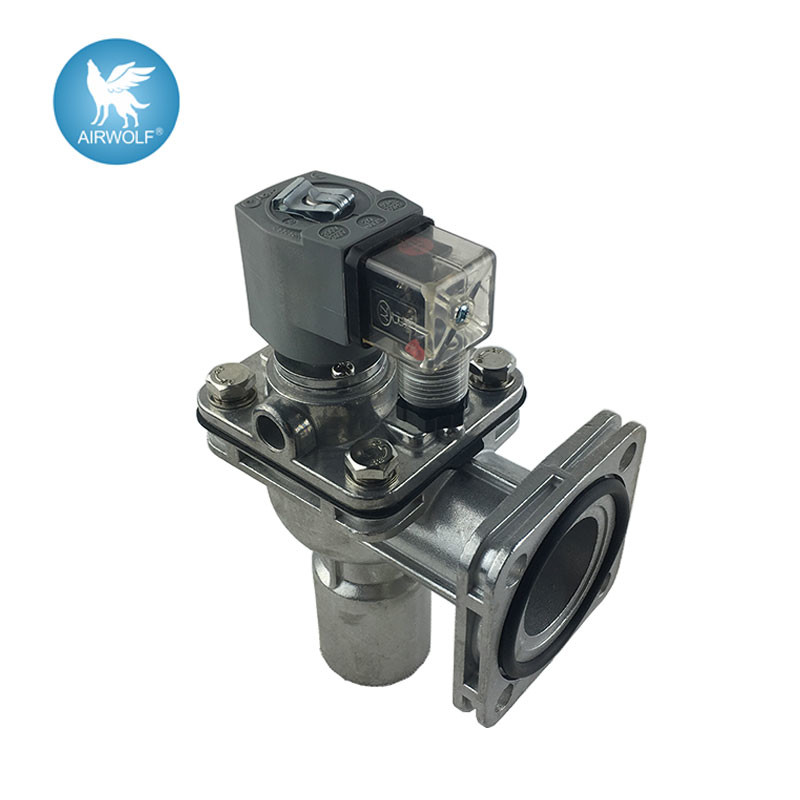

FLY/AIRWOLF FS Pulse Jet Valves CAC25FS G1" flange type Dust valve
Description:
Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal.
Available with integral pilot or as remotely piloted valve.Outlet at 90°.
Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Construction
Body: Diecast aluminium or 316
stainless steel
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or fluororubber (reinforced)
Spring: 304 SS
Screws: 302 SS
Outlet Slide Seal: EPDM or fluororubber
Diaphragm Seat: PA-6 (standard), fluororubber
coated mild steel
Refer to Q Series Solenoid product data
sheet for solenoid construction details.
Weights
| Size | Integral Pilot (CA)
Kg (lbs) | Remote Pilot (RCA) Kg (lbs) |
| 25 | 1.050(2.31) | 0.830(1.82) |
| 45 | 1.830(4.03) | 1.610(3.55) |
Operation
Recommended,
On time range:50-500ms
Recommeded time
between pulses:1 minute or greater
Installation:
1.Prepare inlet flange and blowtube pipes to suit valve specification.
Avoid installing valves underneath the tank.
2.Ensure tank and Pipes are free from dirt,rust or other particulate.
3.Ensure supply air is clean and dry.
4.Mount valves to inlet flange and blowtube to valves with all seals in place.
Tighten flange bolts to 10Nm(7.4ft-ibs) Ensure blowtube is oushed all the way into the valve outlet.
5.Tanks and pipes must be independently restrained from valve.
6.Make electrical connections to solenoid or connect RCA pilot port to pilot valve.(RCA valve only).
7.Apply moderate pressure to system and check for installation leaks.
8.Fully pressurise system.
9.Test fire and listen for proper actuation and crisp pulse noise.
Valve is not a structural component. Do not rely on valve to retain tanks or pipe. Refer to Camlock product specification for installation details.
*Pipes must be to Schedule 40 outside diameter
| Schedule 40 Size | OD mm | OD Inches |
| 1" | 33.4 | 1.315 |
| 1.5" | 48.3 | 1.900 |
Product show:

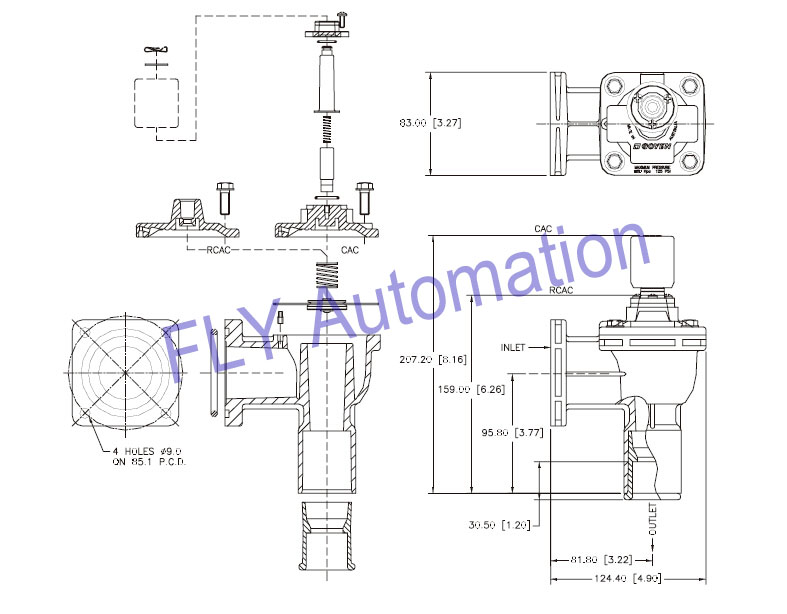

Drawing:
