RCA45T G1 1/2" High performance diaphragm valve T Series Pulse Jet Valves

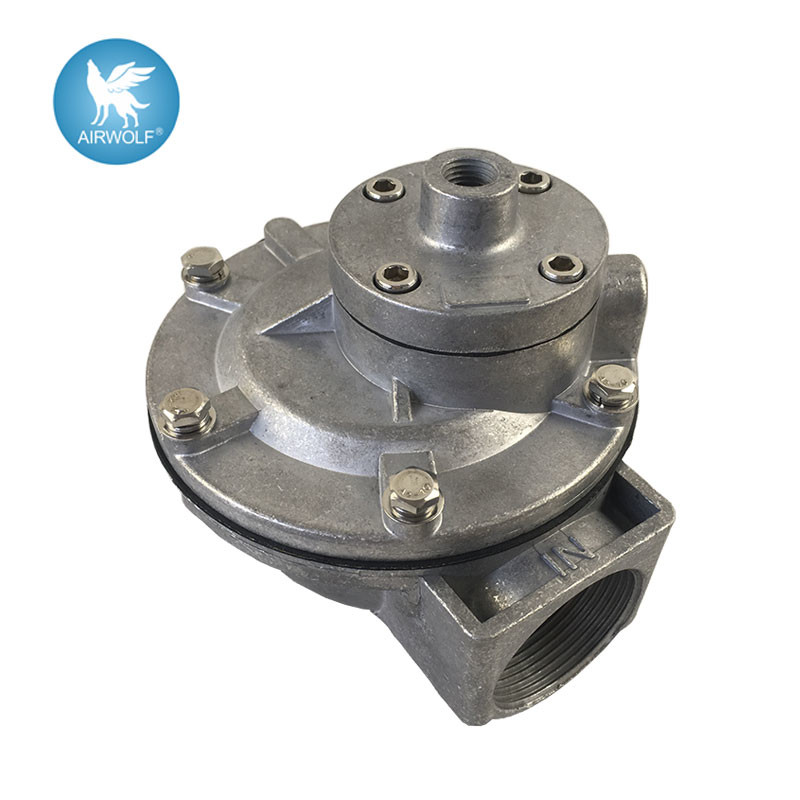

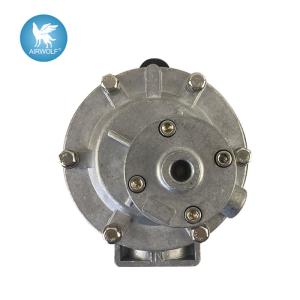

Description
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.
Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Construction
| Body | Aluminium (diecast) |
| Ferrule | 304 SS |
| Armature | 430FR SS |
| Seals | Nitrile or fluororubber (reinforced) |
| Spring | 304 SS |
| Screws | 302 SS |
| Diaphragm Seat | PA-6 (standard), fluororubber coated mild steel or High Density PE Refer to Q Series Solenoid product data sheet for solenoid construction details. |
Operation
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater
Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.
Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Pressure Range: 30(5)-860(125) kPA(Psi)
Temperature Range: Nitrite Seals: -40°C (-40°F) to 82°C(179.6°F) fluororubber Seals: -29°C (-20.2°F) to 232°C (449.6°F)
Weights: | Size | Integral Pilot (CA) Kg (lbs) | Remote Pilot (RCA) Kg (lbs) | Size | Integral Pilot (CA) Kg (lbs) | Remote Pilot (RCA) Kg (lbs) |
| 10 | NA | 0.06 (0.14) | 45 | 1.50(3.30) | 1.28(2.83) |
| 20 | 0.60(1.31) | 0.38 (0.83) | 50 | 2.89(6.38) | 2.68(5.92) |
| 25 | 0.73(1.61) | 0.51 (1.13) | 62 | 3.31 (7.30) | 3.09(6.82) |
| 35 | 1.04(2.28) | 0.83 (1.83) | 76 | 4.77(10.52) | 4.56(10.04) |
Maintenance Kits
| Model | Nitrile | fluororubber | Low Temperature -60°C (-76°F) Min. | Includes |
| CA/RCA45T | K4502 | K4503 | K4522 | Diaphragm kits include main and secondary diaphragms (where required) and all springs.These kits are for discontinued valves. o-ring, armature assembly, armature spring, ferrule |
| Pilot repair kit | K0380 | K0384 | NA |

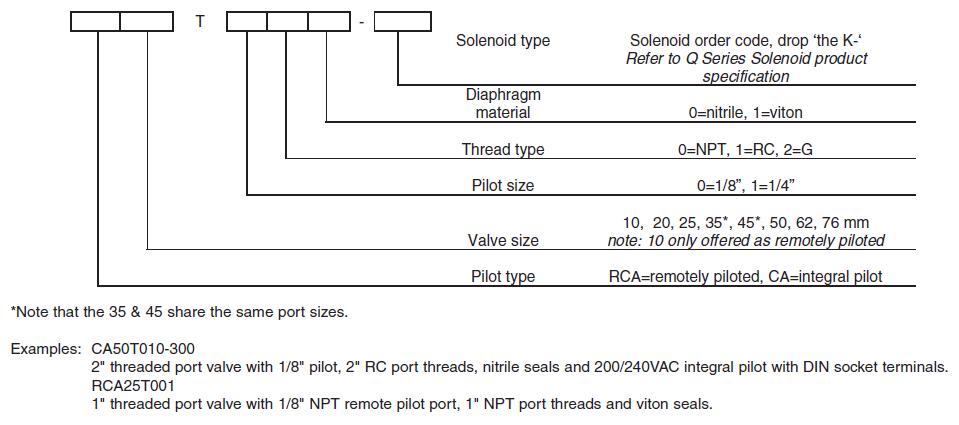

Product Characteristics and Performance:
| Item Code | Nom. Size | mm | Port Size inch | Number of diaphragms | Kv | Flow Cv |
| CA/RCA-45T | 45 | 40 | 1.5 | 2 | 44 | 51 |

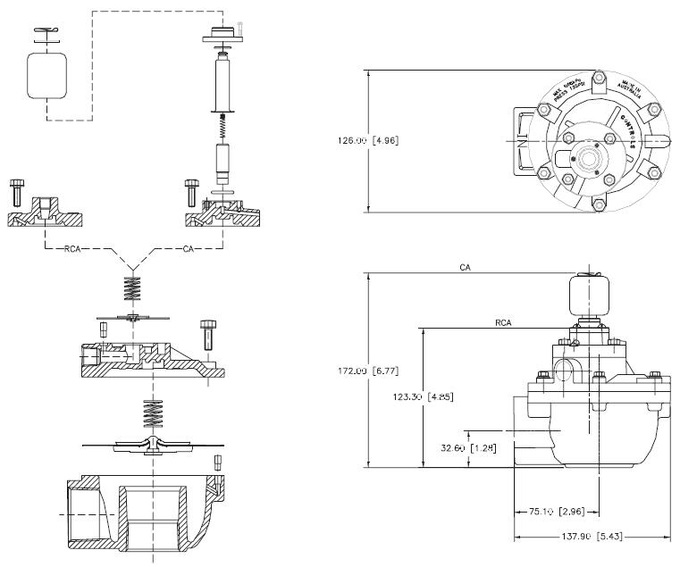

Dimension(mm and inch):
