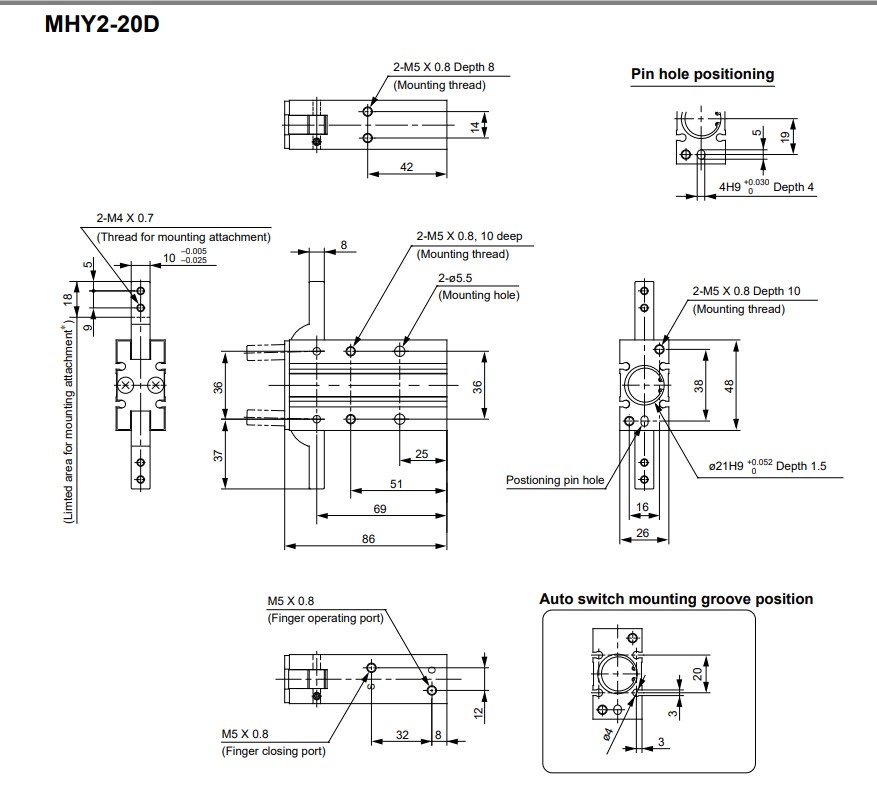

MHY2-20D 180° Angular Gripper Cylinder SMC Double Acting Pneumatic Air Cylinder
| Specifications | |
| Fluid | Air |
| Operating pressure | 0.1 to 0.6 Mpa |
| Ambient and fluid temperature | -10 to 60 ℃ |
| Repeatability | ±0.2mm |
| Max.opreating frequency | 60.c.p.m |
| Lubrication | Not required |
| Auto switch(Option) | Solid state auto switch (3-wire,2-wire) |
Effective gripping force
(N-m) | Opening/Closing angle
( Both sides) | Mass
(g) |
Opening
side | Closing
side |
| 0.16 | 180º | -3º | 70 |
| 0.54 | 150 |
| 1.10 | 320 |
| 2.28 | 560 |
Component Parts
| No | Description | Materia | Note |
| 1 | Body | Aluminum alloy | Hard anodized |
| 2 | Piston | ø10: Stainless steel ø16 to 25: Aluminum alloy | ø16 to 25: Chromated |
| 3 | Joint | Stainless steel | Heat treatment |
| 4 | Finger | Stainless steel | Heat treatment |
| 5 | Cap | Resin | |
| 6 | Ware ring | Resin | |
| 7 | Shaft | Stainless steel | Nitriding |
| 8 | Bushing A | Sintered alloy steel | |
| 9 | Bushing B | Sintered alloy steel | |
| 10 | End plate | Stainless steel | |
| 11 | Bumper | Urethane rubber | |
| 12 | Cylindrical roller | High carbon chrome bearing steel | |
| 13 | Joint roller | Carbon steel | Nitriding |
| 14 | Rubber magnet | Synthetic rubber | |
| 15 | C-shape snap ring | Carbon steel | arbon steel |
| 16 | Piston bolt | Stainless steel | |
