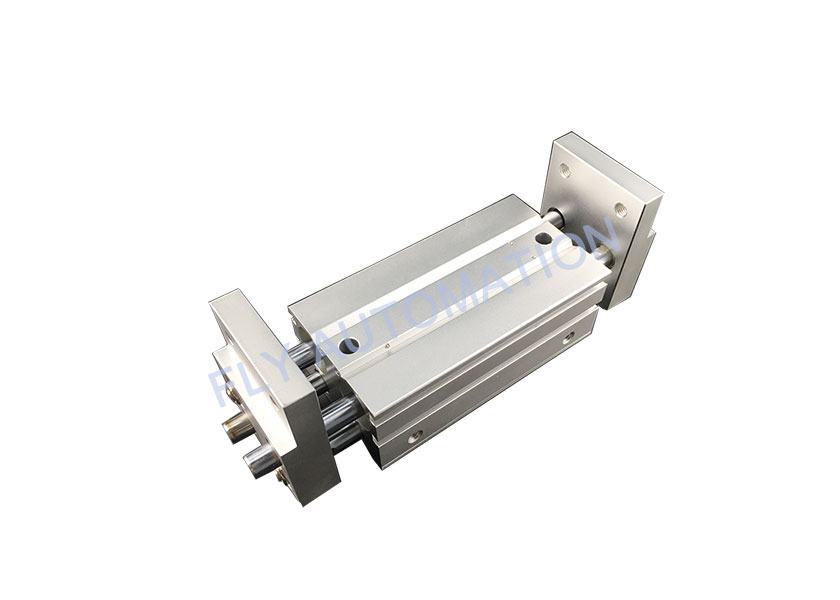

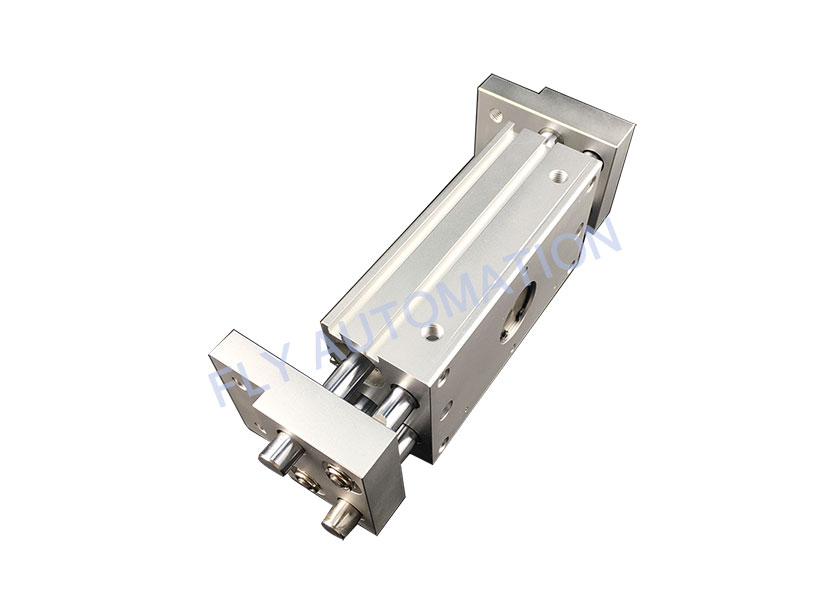

SMC MHL2 Series Wide Opening Parallel Pneumatic Air Gripper Cylinder MHL2-25D1
Long stroke
1.One unit can handle workpieces withvarious diameters.
2.A large amount of gripping force isprovided through the use of adouble piston mechanism, whilemaintaining a compact design.
3.Double-end type oil-impregnatedresin bearings with a metal backingare used for all shafts.
4.Built-in dust-protection mechanismA high degree of freedom formounting
5.Auto switch mountable
Gripping Point
The workpiece gripping point distance should be within the grippingforce ranges given for each pressure in the effective gripping forcegraphs below.
operated with the workpiece gripping point beyond the indicatedranges, the load that will be applied to the fingers or the guide willbecome excessively unbalanced.
As a result, the fingers couldbecome loosened and adversely affect the service life of the unit.
Effective Gripping Force
Indication of effective gripping force.The gripping force shown in the tablesrepresents the gripping force of onefinger when all fingers and attachmentsare in contact with the work.F = one finger thrust.
| Specifications | | | | | | |
| Bore size(mm) | 10 | 16 | 20 | 25 | 32 | 40 |
| Fluid | Air |
| Action | Double acting |
| Operating pressure(Mpa) | 0.15 to 0.6 | 0.1 to 0.6 |
| Ambient and fluid temperature | -10 to 60 ℃ |
| Repeatability | ±0.1 |
| Lubrication | Not required |
Effective gripping force (N)
at 0.5 Mpa | 14 | 45 | 74 | 131 | 228 | 396
|
| Model/Stroke | | | | | |
| Model | Bore size
(mm) | Max.operating
frequency
c.p.m | Opening/Closing
stroke(mm)
(L2-L1) | Width at
closing(mm)
(L1) | Width at
closing(mm)
(L2) | Mass
(g) |
| MHL2-10D | 10 | 60 | 20 | 56 | 76 | 280 |
| MHL2-10D1 | 40 | 40 | 78 | 118 | 345 |
| MHL2-10D2 | 60 | 96 | 156 | 425 |
| MHL2-16D | 16 | 60 | 30 | 68 | 98 | 585 |
| MHL2-16D1 | 40 | 60 | 110 | 170 | 795 |
| MHL2-16D2 | 80 | 130 | 210 | 935 |
| MHL2-20D | 20 | 60 | 40 | 82 | 122 | 1025 |
| MHL2-20D1 | 40 | 80 | 142 | 222 | 1495 |
| MHL2-20D2 | 100 | 162 | 262 | 1690 |
| MHL2-25D | 25 | 60 | 50 | 100 | 150 | 1690 |
| MHL2-25D1 | 40 | 100 | 182 | 282 | 2560 |
| MHL2-25D2 | 120 | 200 | 320 | 2775 |
| MHL2-32D | 32 | 30 | 70 | 150 | 220 | 2905 |
| MHL2-32D1 | 20 | 120 | 198 | 318 | 3820 |
| MHL2-32D2 | 160 | 242 | 402 | 4655 |
| MHL2-40D | 40 | 30 | 100 | 188 | 288 | 5270 |
| MHL2-40D1 | 20 | 160 | 246 | 406 | 6830 |
| MHL2-40D2 | 200 | 286 | 486 | 7905 |
