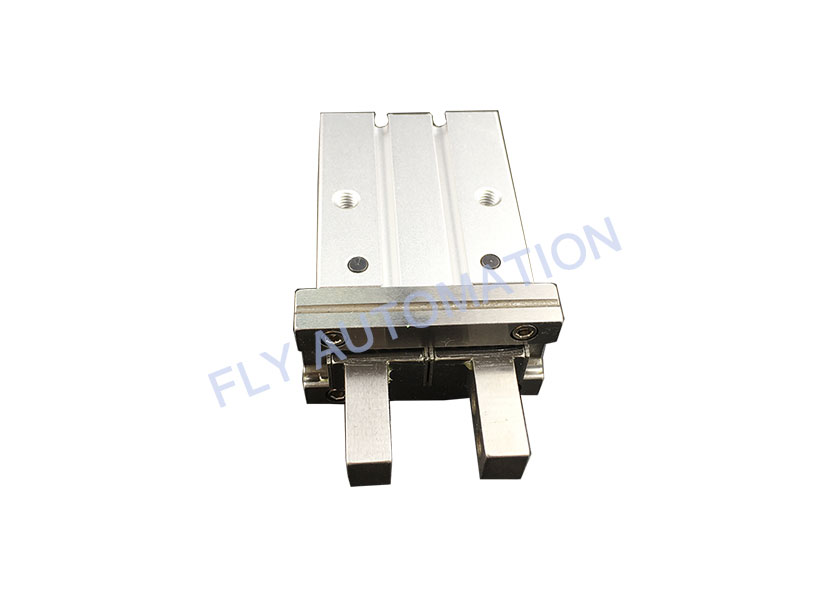

MHZ2-20D Pneumatic Air Cylinders Parallel Type Compact Aluminum Gripper Finger

Brand Name : FLY

Model Number : MHZ2-20D

Certification : CE

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C, Paypal, Credit card

Supply Ability : 1000 pieces per 10 working days

Delivery Time : 1-7 work days

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Fluid : AIR

Ambient and fluid Temperature : -10 ~60 ℃

Lubrication : Not required

Action : Double acting/Single acting

Repeatability : ø6 to ø25: ±0.01 mm ø32, ø40: ±0.02 mm

Max. operating frequency : ø6 to ø25: 180 c.p.m. ø32, ø40: 60 c.p.m.

Contact Now

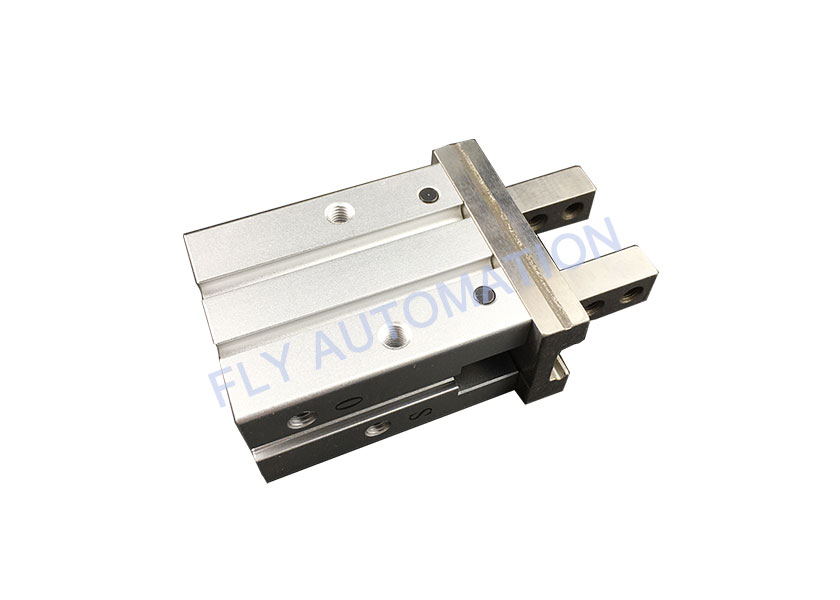

MHZ2-20D Parallel type compact Aluminum Pneumatic Gripper Finger Air Cylinder

Specifications
Fluid			Air
Operating pressure	Double acting		ø6: 0.15 to 0.7MPa ø10: 0.2 to 0.7MPa ø16 to ø40: 0.1 to 0.7MPa
	Single acting	Normally open	ø6: 0.3 to 0.7MPa ø10: 0.35 to 0.7MPa ø16 to ø40: 0.25 to 0.7MPa
		Normally closed
Ambient and fluid temperature			–10 to 60°C
Repeatability			ø6 to ø25: ±0.01mm ø32, ø40: ±0.02mm
Maximum operating frequency			ø6 to ø25: 180c.p.m. ø32, ø40: 60c.p.m.
Lubrication			Not required
Action			Double acting, Single acting
Auto switch (option)			Solid state auto switch (3 wire, 2 wire)

MHZ2-20D Pneumatic Air Cylinders Parallel Type Compact Aluminum Gripper Finger

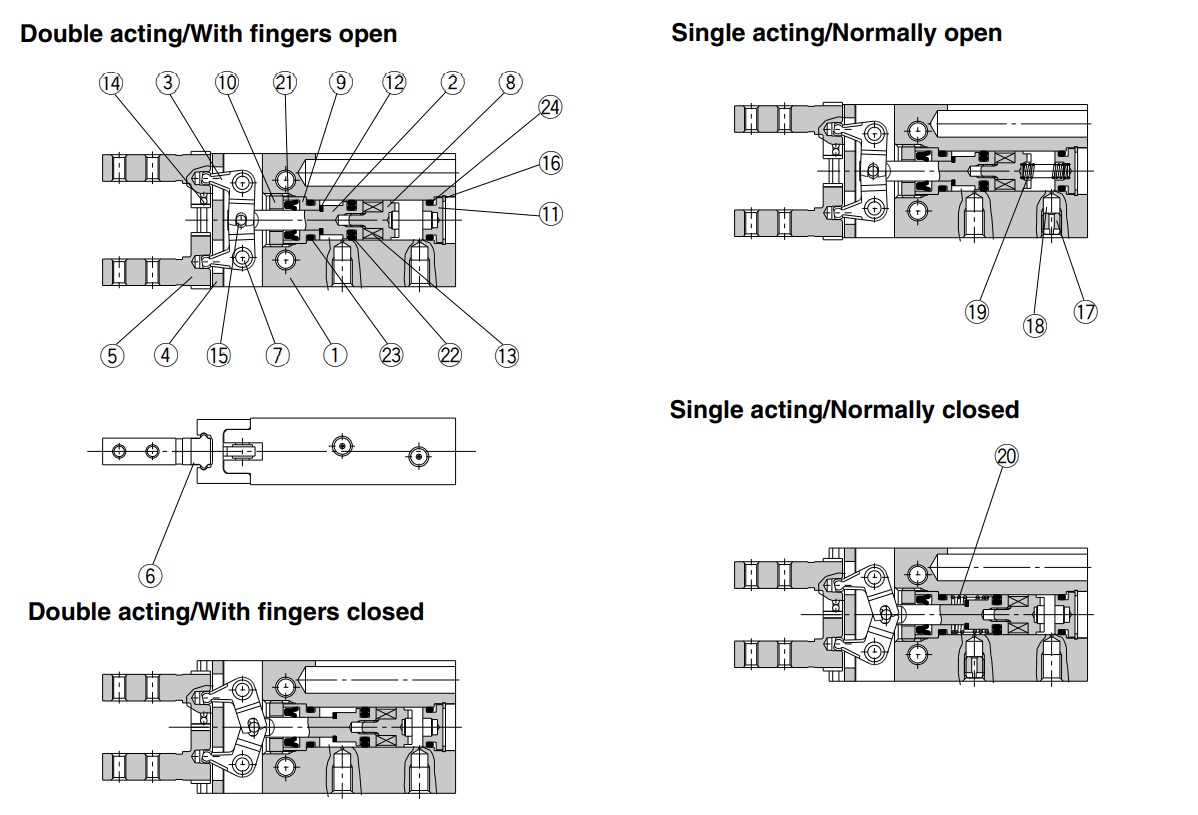

Construction: MHZ2-6

Component Parts

No	Description	Materia	Note
1	Body	Aluminum alloy	Hard anodized
2	Piston	Stainless steel
3	Lever	Stainless steel	Heat treatment
4	Guide	Stainless steel	Heat treatment
5	Finger	Stainless steel	Heat treatment
6	Roller stopper	Stainless steel
7	Lever shaft	Stainless steel	Nitriding
8	Magnet holder	Stainless steel
9	Holder	Brass	Electroless nicked plated
10	Holder lock	Stainless steel
11	Cap	Aluminum alloy	Clear anodized
12	Bumper	Urethane rubber
13	Magnet		Nickel plated
14	Steel balls	High carbon chrome bearing steel
15	Needle roller	High carbon chrome bearing steel
16	Type C retaining ring	Carbon steel	Phosphate coated
17	Exhaust plug	Brass	Electroless nickel plated
18	Exhaust filter	Polyvinyl formal
19	N.O. spring	Stainless steel spring wire
20	N.C. spring	Stainless steel spring wire
21	Rod seal	NBR
22	Piston seal	NBR
23	Gasket	NBR
24	Gasket	NBR

MHZ2-20D Pneumatic Air Cylinders Parallel Type Compact Aluminum Gripper Finger

After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
