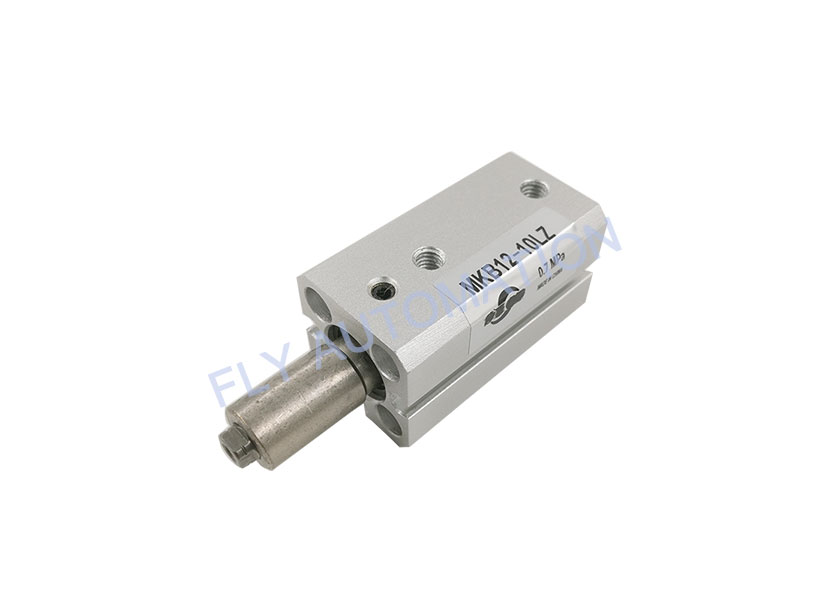

MKB12-10LZ Compact Pneumatic Cylinder Double Acting SMC

Brand Name : FLY

Model Number : MKB12-10LZ

Certification : CE

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C, Paypal, Credit card

Supply Ability : 1000 pieces per 10 working days

Delivery Time : 1-7 work days

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Action : Double acting

Fluid : Air

Proof pressure : 1.5MPA

Lubrication : Not required

Cushion : Rubber bumper

Piston speed : 50 to 200 mm/s

Contact Now

MKB12-10LZ Rotary Clamp Cylinder Double acting SMC Pneumatic Air Cylinder

Specifications
Bore size (mm) 12 16 20 25 32 40 50 63
Action Double acting
Rotary angle 90° ±10°
Rotary direction Clockwise, Counterclockwise
Rotary stroke (mm) 7.5 9.5 15 19
Clamp stroke (mm) 10, 20, 30 10, 20, 30, 50
Theoretical clamp force (N) 40 75 100 185 300 525 825 1400
Fluid Air
Proof pressure 1.5 MPa
Operating pressure range 0.1 to 1 MPa 0.1 to
0.6 MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Non-lube
Piping port size M5 x 0.8 Rc1/8, NPT1/8
G1/8		 Rc1/4, NPT1/4
G1/4
Mounting Through-hole/Both ends tapped common, Head flange
Cushion Rubber bumper
Stroke length tolerance +0.6
–0.4
Piston speed Note 5) 50 to 200 mm/s
Non-rotating accuracy (Clamp part) ±1.4° ±1.2° ±0.9° ±0.7°

Theoretical Output
Bore size
(mm)		 Rod size
(mm)		 Operating
direction		 Piston area
(cm2)		 Operating pressure (MPa)
0.3 0.5 0.7 1.0
12 6 R 0.8 24 40 56 80
H 1.1 33 55 77 110
16 8 R 1.5 45 75 105 150
H 2 60 100 140 200
20 12 R 2 60.8 100 139 200
H 3.1 90.2 149 208 298
25 12 R 3.8 112 185 258 370
H 4.9 149 245 341 490
32 16 R 6 182 300 418 600
H 8 243 400 557 800
40 16 R 10.6 319 525 731 1050
H 12.6 380 625 870 1250
50 20 R 16.5 502 825 1149 1648
H 19.6 596 980 1365 1961
63 20 R 28 851 1400 1950 2801
H 31.2 948 1560 2172 3121

MKB12-10LZ Compact Pneumatic Cylinder Double Acting SMC

MKB12-10LZ Compact Pneumatic Cylinder Double Acting SMC

MKB12-10LZ Compact Pneumatic Cylinder Double Acting SMC

After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
