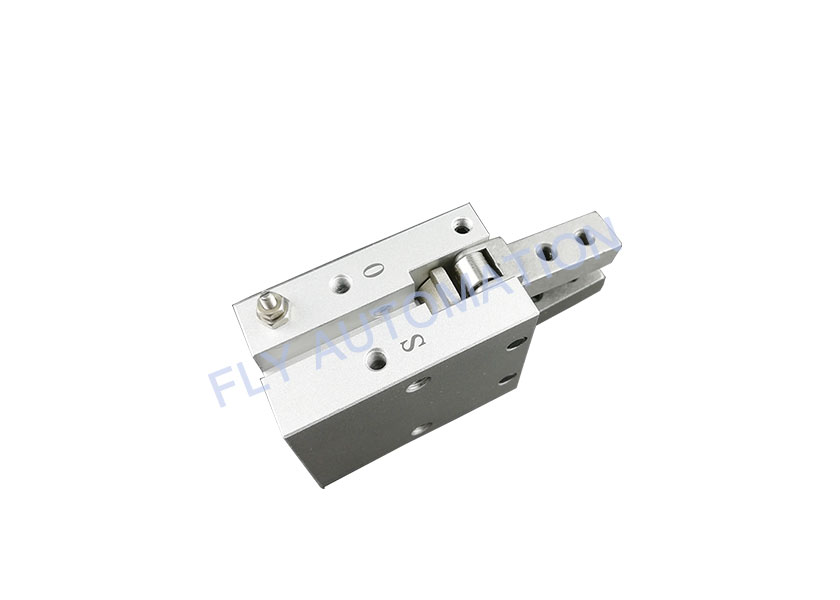

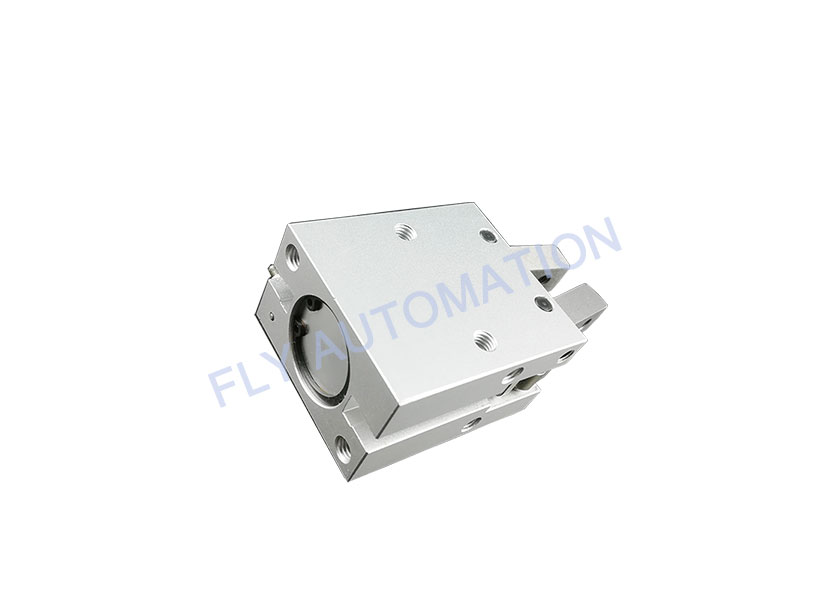

SMC MHC2-25D Standard Augular Type Air Gripper Pneumatic Air Cylinder
ø10 , ø16, ø20, ø25
●A large amount of gripping force is provided through the use of a double piston mechanism, while maintain- ing a compact design.
●Built-in variable throttle
●A solid state auto switch with an indicator light can be mounted.
| Specifications | |
| Fluid | Air |
| Operating pressure | Double acting | 0.1 to 0.6 Mpa |
| Single acting | 0.25 to 0.6 Mpa |
| Ambient and fluid temperature | -10℃ to 60℃ |
| Repeatability | ±0.01mm |
| Max.operating frequency | 180 c.p.m |
| Lubrication | Not required |
| Action | Double acting, Single acting |
| Auto switch (Option) | Solid state auto switch (3-wire,2-wire) |
| Model | | | | | |
| Action | Model | Bore size
(mm) | Gripping moment (N-m) | Opening/closing
angel
(Both sides) | Weight
(g) |
| Double acting | MHC2-10D | 10 | 0.10 | 30º to －10º | 39 |
| MHC2-16D | 16 | 0.39 | 91 |
| MHC2-20D | 20 | 0.70 | 180 |
| MHC2-25D | 25 | 1.36 | 311 |
| Single acting | MHC2-10S | 10 | 0.070 | 30º to －10º | 39 |
| MHC2-16S | 16 | 0.31 | 92 |
| MHC2-20S | 20 | 0.54 | 183 |
| MHC2-25S | 25 | 1.08 | 316 |
Guidelines for the selection of the gripper with respect to workpiece mass
1.Although conditions differ according to theworkpiece shape and the coefficient of frictionbetween the attachments and the workpiece,select a model that can provide a grippingforce of 10 to 20 times the workpiece mass, ormore.
2. If high acceleration, deceleration or impact forces are encountered during motion, afurther margin of safety should be considered.o
3.If there is an overhang, please consult with SMC.
Indication of effective gripping force

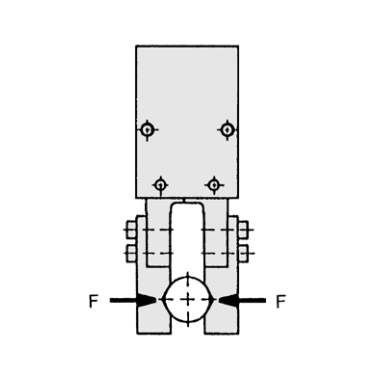

1.The effective gripping force shown in thegraphs below is expressed as F, which is thethrust of one finger, when both fingers andattachments are in full contact with theworkpiece as shown in the figure below.
A Caution
Use caution for the anti-corrosiveness of finger guide section.
Martensitic stainless steel is used for the finger. However, be aware that its anti-corrosion performance is inferior to austenitic stainlesssteel. ln particular, the finger might be rusted in an environment where water droplets are adhered to it due to dew condensation.
How to Mount the Attachment to the Finger
To mount the attachment to thefinger, make sure to use awrench to support the attachment so as not to applyundue strain on the finger.Refer to the tablebelow for the propertightening torque onthe bolt used forsecuring the attachment to thefinger.
FAQ:
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.
Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
Warranty
All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Product Tags:
|
|

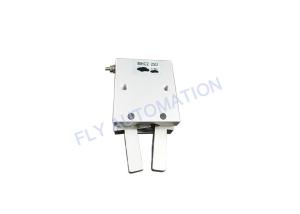

Augular Type Air Gripper Pneumatic Cylinder SMC MHC2-25D Standard Images
|
