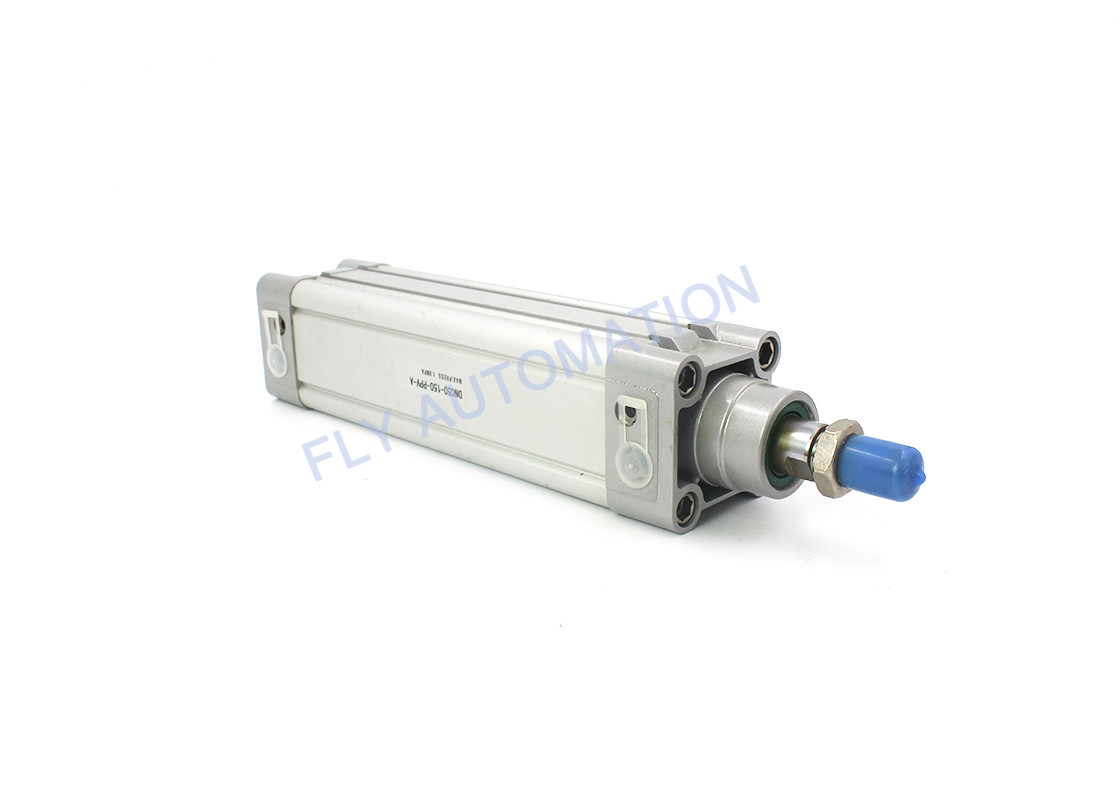

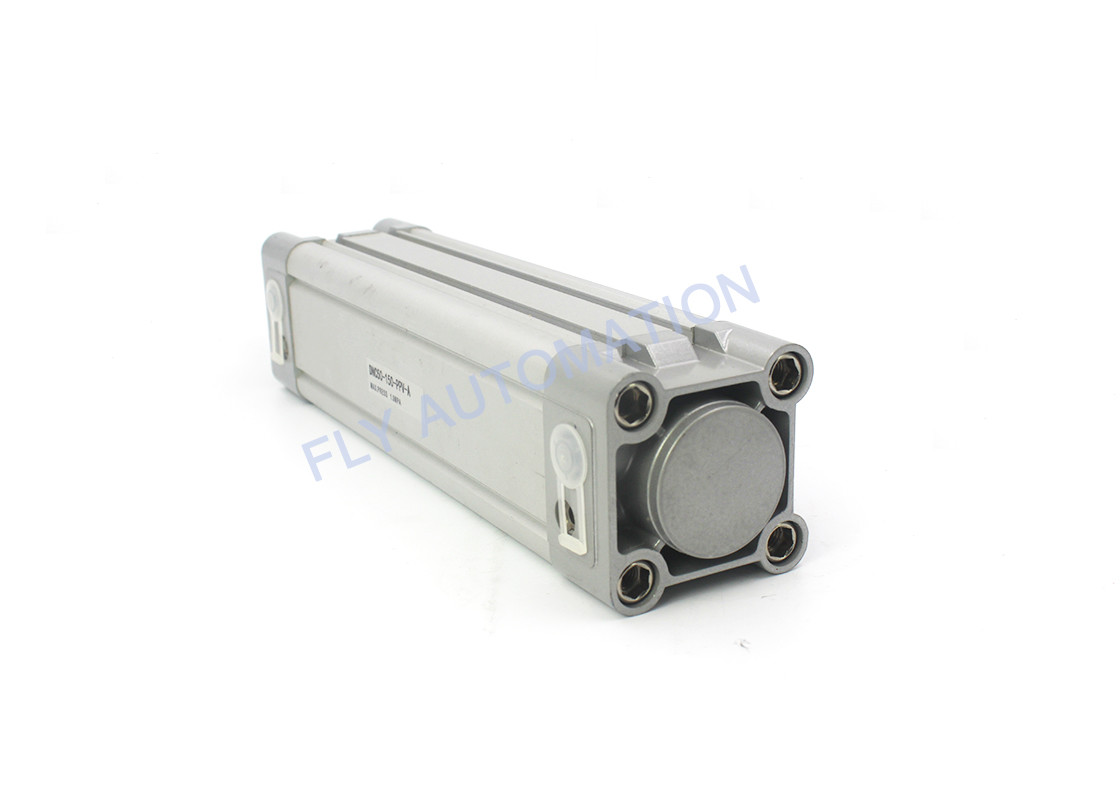

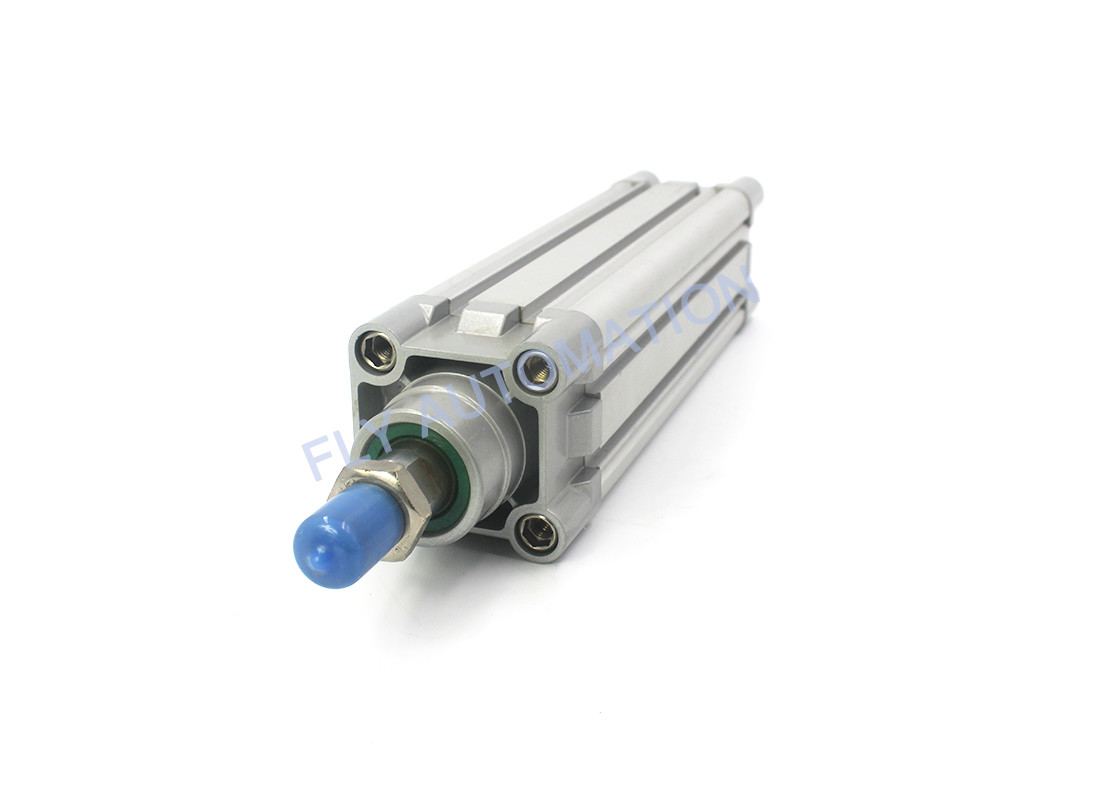

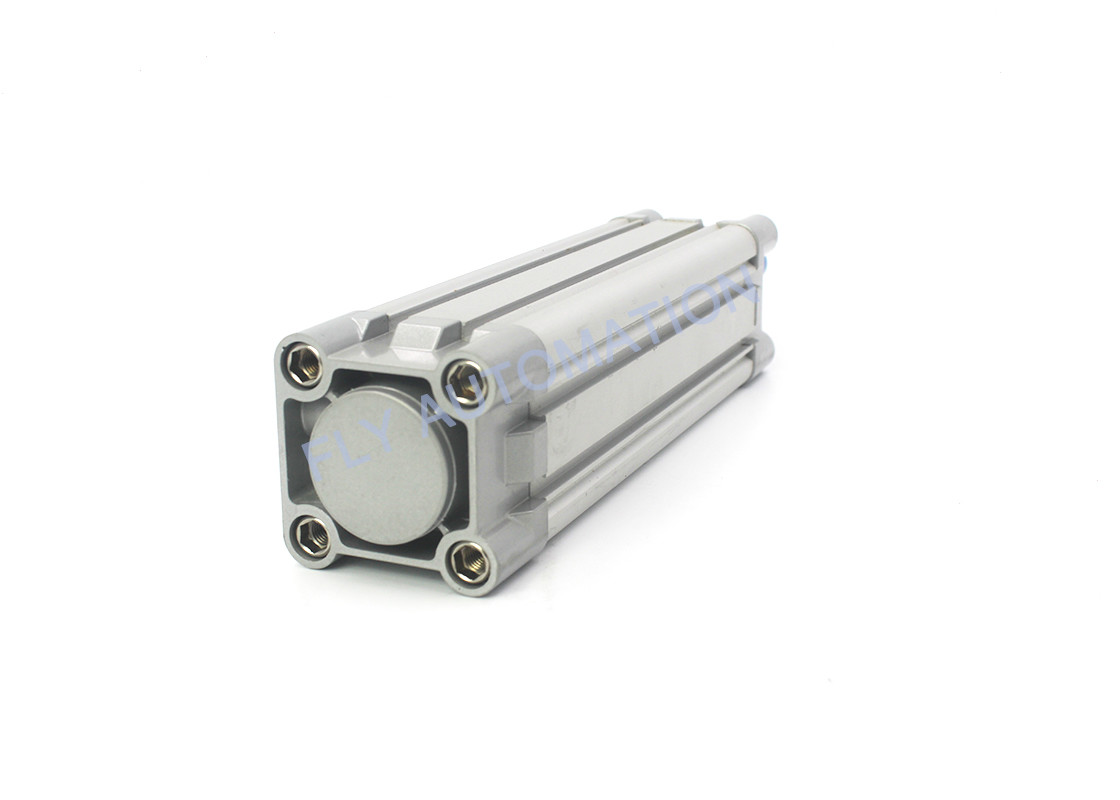

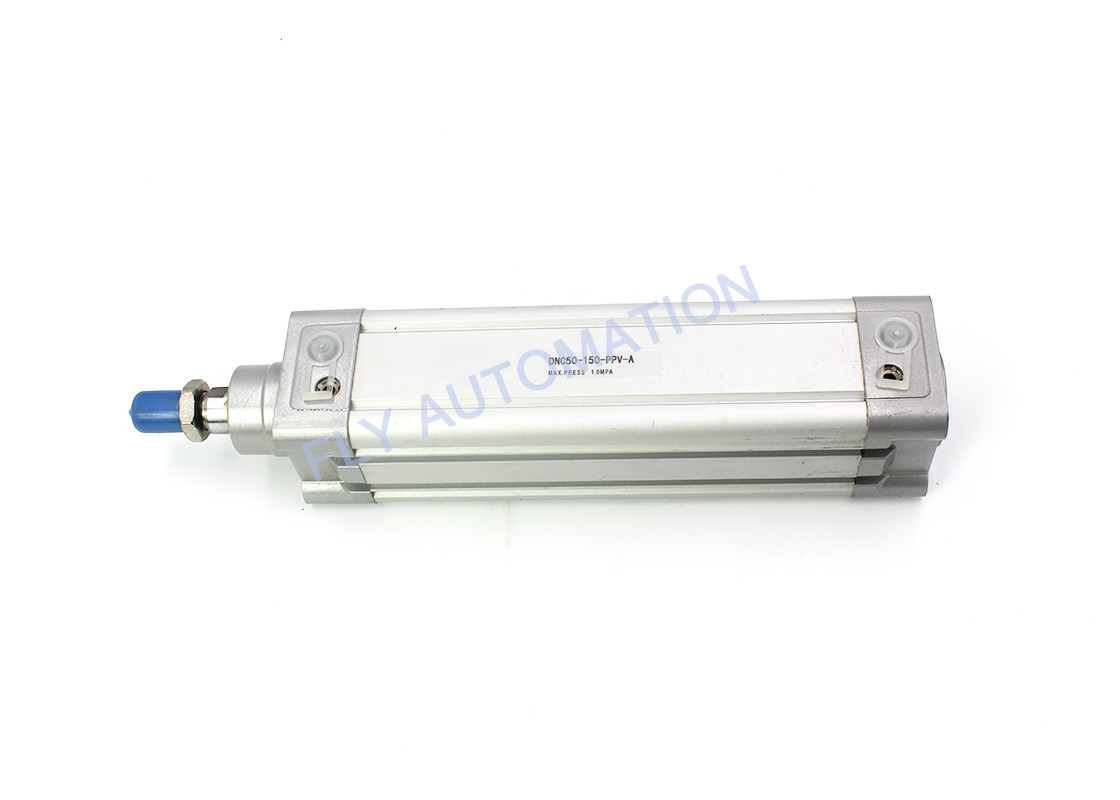

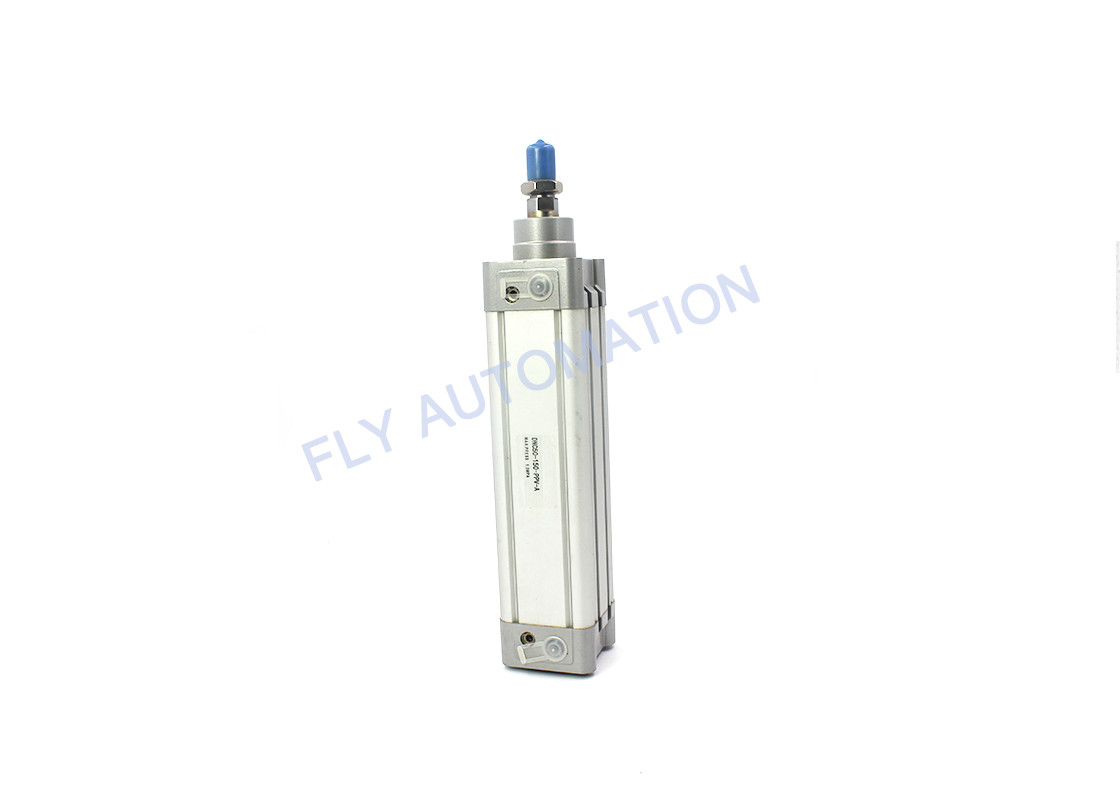

FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552

Brand Name : FESTO

Model Number : DNC50-150-PPV-A

Certification : ISO Standand

Place of Origin : EU

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram Paypal

Supply Ability : 50 PCS Per Week

Delivery Time : 7 working Days

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Profile barrel : Smooth-anodised wrought aluminium alloy

Bearing and end caps : Die-cast aluminium

Piston rod : Hard-chrome-plated tempered steel / High-alioy steel

Seals : Polyurethane.nitrile rubber

Note on materials : RoHS-compliant

Mounting position : Any

Contact Now

FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552

1. Standards-based cylinder DNC-V
2. Standards-based profile cylinder to ISO 15552 with fixed or adjustable cushioning.
3. Mounting hole pattern to ISO 15552
4. Assembled and fitted with tubing ready for connection
5. Particularly suitable for decentralised use in large systems
6. Valve versions: monostable/single solenoid or bistable/double solenoid valves, mounted on the right or left
7. For position sensing
8. Wide range of variants for customised applications

Key features:

1.Standards-based cylinders toISO 15552 (corresponds to thewithdrawn standards ISO 6431,DIN ISO 6431,
VDMA24562,NFE49003.1 and UNl 10290)
2. The modern, consistent designsaves up to 11% more space com-pared to ordinary standards-basedcylinders,
providing a significantlymore compact system structure
3. An extensive range of accessoriesenables the cylinder to be installedvirtually anwhere
4. The widest range of variants on themarket offers the ideal cylinder DNCfor any application

Standards-based ιylinder Basic version
[1J Profile barrel Smooth-anodised wrought aluminium alloy
[2J Bearing and end caps Die-cast aluminium
[3J Piston rod High-alloy steel Anodised wrought aluminium High-alloy inless steel
Seals Polyurethane.nitrile rubber
Note on materials
Standards-based cylinder R8
[lJ Profile barrel Smooth-aoodised wrought aluminium alloy
[2J Bearing and end caps Die-cast aluminium
[3J Piston rod Hard-chrome-plated tempered
steel		 High-alioy steel
Seals Polyurethane.nitrile rubber Fluoro rubber
Note on materials RoHS- .ompliant
IContatωimnn IS pamn

FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552

FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552FESTO ISO6431 DNC50-150-PPV-A Pneumatic Air Cylinders ISO15552

Ordering data – With position sensing
Piston Φ
[mm]		 Stroke
[mm]		 Part no. Type1) Piston Φ
[mm]		 Stroke
[mm]		 Part no. Type1)
32 20 1922617 DNC-32-20-PPV-A 40 20 1922623 DNC-40-20-PPV-A
25 163305 DNC-32-25-PPV-A 25 163337 DNC-40-25-PPV-A
30 1922618 DNC-32-30-PPV-A 30 1922624 DNC-40-30-PPV-A
40 163306 DNC-32-40-PPV-A 40 163338 DNC-40-40-PPV-A
50 163307 DNC-32-50-PPV-A 50 163339 DNC-40-50-PPV-A
60 1922619 DNC-32-60-PPV-A 60 1922625 DNC-40-60-PPV-A
70 1922620 DNC-32-70-PPV-A 70 1922626 DNC-40-70-PPV-A
80 163308 DNC-32-80-PPV-A 80 163340 DNC-40-80-PPV-A
100 163309 DNC-32-100-PPV-A 100 163341 DNC-40-100-PPV-A
125 163310 DNC-32-125-PPV-A 125 163342 DNC-40-125-PPV-A
150 1922621 DNC-32-150-PPV-A 150 1922627 DNC-40-150-PPV-A
160 163311 DNC-32-160-PPV-A 160 163343 DNC-40-160-PPV-A
200 163312 DNC-32-200-PPV-A 200 163344 DNC-40-200-PPV-A
250 163313 DNC-32-250-PPV-A 250 163345 DNC-40-250-PPV-A
300 1922622 DNC-32-300-PPV-A 300 1922628 DNC-40-300-PPV-A
320 163314 DNC-32-320-PPV-A 320 163346 DNC-40-320-PPV-A
400 163315 DNC-32-400-PPV-A 400 163347 DNC-40-400-PPV-A
500 163316 DNC-32-500-PPV-A 500 163348 DNC-40-500-PPV-A
50 20 1922629 DNC-50-20-PPV-A 63 20 1922635 DNC-63-20-PPV-A
25 163369 DNC-50-25-PPV-A 25 163401 DNC-63-25-PPV-A
30 1922630 DNC-50-30-PPV-A 30 1922636 DNC-63-30-PPV-A
40 163370 DNC-50-40-PPV-A 40 163402 DNC-63-40-PPV-A
50 163371 DNC-50-50-PPV-A 50 163403 DNC-63-50-PPV-A
60 1922631 DNC-50-60-PPV-A 60 1922637 DNC-63-60-PPV-A
70 1922632 DNC-50-70-PPV-A 70 1922638 DNC-63-70-PPV-A
80 163372 DNC-50-80-PPV-A 80 163404 DNC-63-80-PPV-A
100 163373 DNC-50-100-PPV-A 100 163405 DNC-63-100-PPV-A
125 163374 DNC-50-125-PPV-A 125 163406 DNC-63-125-PPV-A
150 1922633 DNC-50-150-PPV-A 150 1922639 DNC-63-150-PPV-A
160 163375 DNC-50-160-PPV-A 160 163407 DNC-63-160-PPV-A
200 163376 DNC-50-200-PPV-A 200 163408 DNC-63-200-PPV-A
250 163377 DNC-50-250-PPV-A 250 163409 DNC-63-250-PPV-A
300 1922634 DNC-50-300-PPV-A 300 1922640 DNC-63-300-PPV-A
320 163378 DNC-50-320-PPV-A 320 163410 DNC-63-320-PPV-A
400 163379 DNC-50-400-PPV-A 400 163411 DNC-63-400-PPV-A
500 163380 DNC-50-500-PPV-A 500 163412 DNC-63-500-PPV-A
Ordering data – With position sensing
Piston Φ
[mm]		 Stroke
[mm]		 Part no. Type1)
80 20 1922641 DNC-80-20-PPV-A
25 163433 DNC-80-25-PPV-A
30 1922642 DNC-80-30-PPV-A
40 163434 DNC-80-40-PPV-A
50 163435 DNC-80-50-PPV-A
60 1922643 DNC-80-60-PPV-A
70 1922644 DNC-80-70-PPV-A
80 163436 DNC-80-80-PPV-A
100 163437 DNC-80-100-PPV-A
125 163438 DNC-80-125-PPV-A
150 1922645 DNC-80-150-PPV-A
160 163439 DNC-80-160-PPV-A
200 163440 DNC-80-200-PPV-A
250 163441 DNC-80-250-PPV-A
300 1922646 DNC-80-300-PPV-A
320 163442 DNC-80-320-PPV-A
400 163443 DNC-80-400-PPV-A
500 163444 DNC-80-500-PPV-A
100 25 163465 DNC-100-25-PPV-A
40 163466 DNC-100-40-PPV-A
50 163467 DNC-100-50-PPV-A
80 163468 DNC-100-80-PPV-A
100 163469 DNC-100-100-PPV-A
125 163470 DNC-100-125-PPV-A
160 163471 DNC-100-160-PPV-A
200 163472 DNC-100-200-PPV-A
250 163473 DNC-100-250-PPV-A
320 163474 DNC-100-320-PPV-A
400 163475 DNC-100-400-PPV-A
500 163476 DNC-100-500-PPV-A
125 25 163497 DNC-125-25-PPV-A
40 163498 DNC-125-40-PPV-A
50 163499 DNC-125-50-PPV-A
80 163500 DNC-125-80-PPV-A
100 163501 DNC-125-100-PPV-A
125 163502 DNC-125-125-PPV-A
160 163503 DNC-125-160-PPV-A
200 163504 DNC-125-200-PPV-A
250 163505 DNC-125-250-PPV-A
320 163506 DNC-125-320-PPV-A
400 163507 DNC-125-400-PPV-A
500 163508 DNC-125-500-PPV-A
Ordering data – Without position sensing
Piston Φ
[mm]		 Stroke
[mm]		 Part no. Type1) Piston Φ
[mm]		 Stroke
[mm]		 Part no. Type1)
32 25 163319 DNC-32-25-PPV 40 25 163351 DNC-40-25-PPV
40 163320 DNC-32-40-PPV 40 163352 DNC-40-40-PPV
50 163321 DNC-32-50-PPV 50 163353 DNC-40-50-PPV
80 163322 DNC-32-80-PPV 80 163354 DNC-40-80-PPV
100 163323 DNC-32-100-PPV 100 163355 DNC-40-100-PPV
125 163324 DNC-32-125-PPV 125 163356 DNC-40-125-PPV
160 163325 DNC-32-160-PPV 160 163357 DNC-40-160-PPV
200 163326 DNC-32-200-PPV 200 163358 DNC-40-200-PPV
250 163327 DNC-32-250-PPV 250 163359 DNC-40-250-PPV
320 163328 DNC-32-320-PPV 320 163360 DNC-40-320-PPV
400 163329 DNC-32-400-PPV 400 163361 DNC-40-400-PPV
500 163330 DNC-32-500-PPV 500 163362 DNC-40-500-PPV
50 25 163383 DNC-50-25-PPV 63 25 163415 DNC-63-25-PPV
40 163384 DNC-50-40-PPV 40 163416 DNC-63-40-PPV
50 163385 DNC-50-50-PPV 50 163417 DNC-63-50-PPV
80 163386 DNC-50-80-PPV 80 163418 DNC-63-80-PPV
100 163387 DNC-50-100-PPV 100 163419 DNC-63-100-PPV
125 163388 DNC-50-125-PPV 125 163420 DNC-63-125-PPV
160 163389 DNC-50-160-PPV 160 163421 DNC-63-160-PPV
200 163390 DNC-50-200-PPV 200 163422 DNC-63-200-PPV
250 163391 DNC-50-250-PPV 250 163423 DNC-63-250-PPV
320 163392 DNC-50-320-PPV 320 163424 DNC-63-320-PPV
400 163393 DNC-50-400-PPV 400 163425 DNC-63-400-PPV
500 163394 DNC-50-500-PPV 500 163426 DNC-63-500-PPV
80 25 163447 DNC-80-25-PPV 100 25 163479 DNC-100-25-PPV
40 163448 DNC-80-40-PPV 40 163480 DNC-100-40-PPV
50 163449 DNC-80-50-PPV 50 163481 DNC-100-50-PPV
80 163450 DNC-80-80-PPV 80 163482 DNC-100-80-PPV
100 163451 DNC-80-100-PPV 100 163483 DNC-100-100-PPV
125 163452 DNC-80-125-PPV 125 163484 DNC-100-125-PPV
160 163453 DNC-80-160-PPV 160 163485 DNC-100-160-PPV
200 163454 DNC-80-200-PPV 200 163486 DNC-100-200-PPV
250 163455 DNC-80-250-PPV 250 163487 DNC-100-250-PPV
320 163456 DNC-80-320-PPV 320 163488 DNC-100-320-PPV
400 163457 DNC-80-400-PPV 400 163489 DNC-100-400-PPV
500 163458 DNC-80-500-PPV 500 163490 DNC-100-500-PPV
