M3 Compact Pneumatic Air Cylinders ADN-12-20-I-P-A 536214 GTIN4052568087227

  • 1
  • 2
  • 3

Brand Name : FESTO

Model Number : ADN-12-20-I-P-A

Place of Origin : China

MOQ : 1pc

Price : EXW USD25-35

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100 pcs per month

Delivery Time : 7-10 working days

Packaging Details : plastic bag, carton，OPP bag

Brand : FESTO

Type : ADN-12-20-I-P-A

Part no : 536214

GTIN : 4052568087227

Piston rod thread : M3

Conforms to standard : ISO 21287

Contact Now

FESTO Compact cylinder ADN-12-20-I-P-A 536214 GTIN4052568087227 Pneumatic Air Cylinders

About product

1.ISO 21287

2.Up to 50% less installation space than comparable standards-based cylinders to ISO 15552.

3.Piston rod with female or male thread.

Technical Data

Stroke 20 mm
Piston diameter 12 mm
Piston rod thread M3
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch

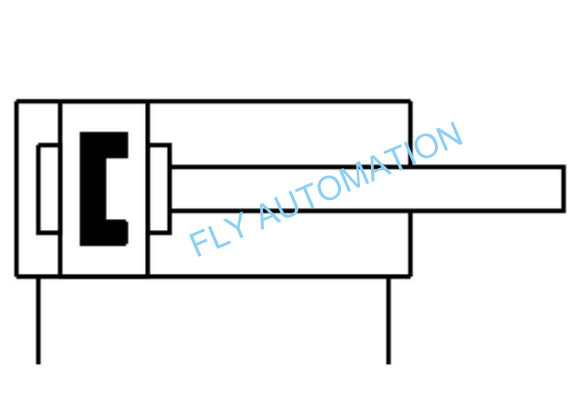

Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 77 g
Additional weight per 10 mm stroke 12 g
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Aluminium Anodised
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised


Another stroke as follow

Type Order no GTIN Price
ADN-12-5-I-P-A 536211 4052568087197 USD25-35
ADN-12-10-I-P-A 536212 4052568087203 USD25-35
ADN-12-15-I-P-A 536213 4052568087210 USD25-35
ADN-12-20-I-P-A 536214 4052568087227 USD25-35
ADN-12-25-I-P-A 536215 4052568087234 USD25-35
ADN-12-30-I-P-A 536216 4052568087241 USD25-35
ADN-12-40-I-P-A 536217 4052568087258 USD25-35

Cushioning

M3 Compact Pneumatic Air Cylinders ADN-12-20-I-P-A 536214 GTIN4052568087227

There are so many kinds. Hurry to call me!
