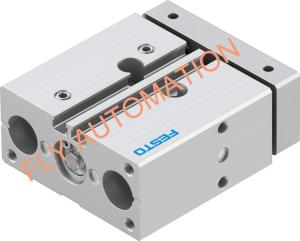

GTIN4052568013103 Pneumatic Air Cylinders Guided Drive DFM-12-20-P-A-GF 170825

Name: GTIN4052568013103 Pneumatic Air Cylinders Guided Drive DFM1220PAGF 170825
Brand: FESTO
Price: 1 USD

Quality GTIN4052568013103 Pneumatic Air Cylinders Guided Drive DFM-12-20-P-A-GF 170825 wholesale

Brand Name : FESTO

Model Number : DFM-12-20-P-A-GF

Place of Origin : China

MOQ : 1pc

Price : EXW USD50-60

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100 pcs per month

Delivery Time : 10-15working days

Packaging Details : Plastic bag, Carton

Type : DFM-12-20-P-A-GF

Part no : 170825

Brand : FESTO

GTIN : 4052568013103

Product weight : 392 g

Pneumatic connection : M5

Contact Now

FESTO Guided drive DFM-12-20-P-A-GF 170825 GTIN4052568013103 Pneumatic Air Cylinders

Advantage

1.High rigidity.

2.Maintenance-free.

3.Easy to operate.

4.Long service life.

5.durable.

Technical Data

Stroke	20 mm
Piston diameter	12 mm
Operating mode, drive unit	Yoke
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Guide	Plain-bearing guide
Design	Guidance
Position detection	Via proximity switch
Symbol	00991737
Max. speed	0.8 m/s
Mode of operation	Double-acting
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Product weight	392 g
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material seals	NBR
Material housing	Wrought aluminium alloy
Material piston rod	High-alloy stainless steel

Other size as follow

Type	Order no	Weight(g)	Price
DFM-12-10-P-A-GF	170824	344	USD50-60
DFM-12-20-P-A-GF	170825	392	USD50-60
DFM-12-25-P-A-GF	170826	411	USD50-60
DFM-12-30-P-A-GF	170827	435	USD50-60
DFM-12-40-P-A-GF	170828	497	USD50-60
DFM-12-50-P-A-GF	170829	544	USD50-60
DFM-12-80-P-A-GF	170830	688	USD50-60
DFM-12-100-P-A-GF	170831	779	USD50-60

Mounting options

GTIN4052568013103 Pneumatic Air Cylinders Guided Drive DFM-12-20-P-A-GF 170825

A wide range of products with excellent prices. Please hurry to me!
