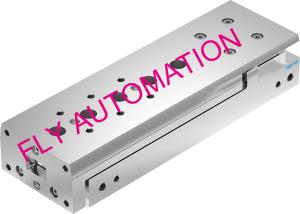

GTIN4052568446710 Mini Slide Air Pneumatic Cylinder DGST-10-20-E1A 8078840

Name: GTIN4052568446710 Mini Slide Air Pneumatic Cylinder DGST1020E1A 8078840
Brand: FESTO
Price: 1 USD

Quality GTIN4052568446710 Mini Slide Air Pneumatic Cylinder DGST-10-20-E1A 8078840 wholesale

Brand Name : FESTO

Model Number : DGST-10-20-E1A

Place of Origin : China

MOQ : 1pc

Price : EXW USD350-400

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 20 pcs per month

Delivery Time : 10-15working days

Packaging Details : Plastic bag, Carton

Part no : 8078840

Type : DGST-10-20-E1A

Brand : FESTO

GTIN : 4052568446710

Max. speed : 0.5 m/s

LABS (PWIS) conformity : VDMA24364-B2-L

Contact Now

FESTO Mini slide DGST-10-20-E1A 8078840 GTIN4052568446710 Pneumatic Air Cylinders

About Product

1.Excellent value for money.

2.High feed forces.

3.Symmetrical mounting interfaces.

4.Precise and resilient roller bearing guide.

5.Simple design with symmetrical mounting interfaces.

6.Can be operated without additional cushioning components.

Technical Data

Stroke	20 mm
Piston diameter	10 mm
Operating mode, drive unit	Yoke
Cushioning	Elastomer cushioning, double-sided, stroke not adjustable
Mounting position	optional
Guide	Recirculating ball bearing guide
Design	Twin piston Yoke Piston rod Slide
Position detection	Via proximity switch
Symbol	00991249
Max. speed	0.5 m/s
Repetition accuracy	<= 0.3 mm
Mode of operation	Double-acting
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C-60°C
Product weight	254 g
Type of mounting	With through-hole
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material seals	HNBR
Material guide	POM TPE-E High-alloy steel
Material housing	Wrought aluminium alloy
Material piston rod	High-alloy stainless steel

Other size as follow

Type	Order no	Weight(g)	Price
DGST-10-10-E1A	8078839	247	USD350-400
DGST-10-20-E1A	8078840	254	USD350-400
DGST-10-30-E1A	8078841	292	USD350-400
DGST-10-40-E1A	8078842	324	USD350-400
DGST-10-50-E1A	8078843	359	USD350-400
DGST-10-80-E1A	8078844	501	USD350-400
DGST-10-100-E1A	8078845	561	USD350-400

Application examples

GTIN4052568446710 Mini Slide Air Pneumatic Cylinder DGST-10-20-E1A 8078840

A wide range of products with excellent prices. Please hurry to me!

Product Tags:

Mini Slide Air Pneumatic Cylinder

8078840 Air Pneumatic Cylinder

0.5m/s Compact Air Cylinder
