ADNGF-25-15-P-A 554231 Compact Pneumatic Cylinder GTIN4052568198589

Product Categories
FLY AUTOMATION
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

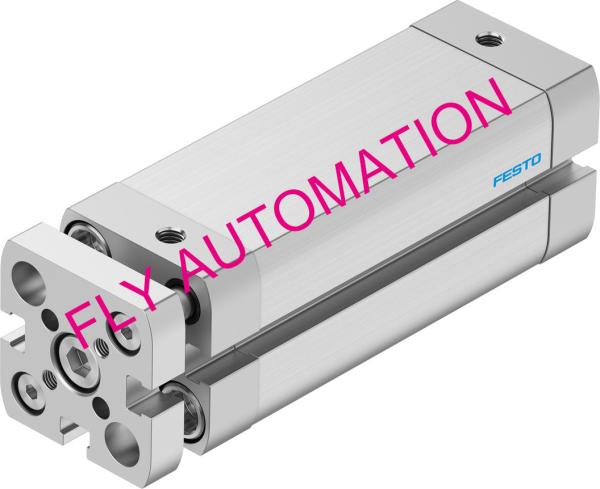

ADNGF-25-15-P-A 554231 Compact Pneumatic Cylinder GTIN4052568198589

  • 1
  • 2
  • 3

Brand Name : FESTO

Model Number : ADNGF-25-15-P-A

Place of Origin : China

MOQ : 1pc

Price : EXW USD40-50

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100 pcs per month

Delivery Time : 10-15working days

Packaging Details : Plastic bag, Carton，OPP bag

Part no : 554231

Brand : FESTO

Type : ADNGF-25-15-P-A

GTIN : 4052568198589

Ambient temperature : -20°C-80°C

Basic weight for 0 mm stroke : 191 g

Contact Now

FESTO Compact cylinder ADNGF-25-15-P-A 554231 GTIN4052568198589 Pneumatic Air Cylinders

About product

1.Small loads,Low speeds,Small cushioning capacity.

2.No adjustment required.

3.Time-saving.

4.Double-acting.

5.Excellent quality and long service life.

Technical Data

Stroke 15 mm
Piston diameter 25 mm
Based on standard ISO 21287
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Protection against torque/guide Guide rod with yoke
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 191 g
Additional weight per 10 mm stroke 28 g
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Aluminium Anodised
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised


Other size as below

Type Order no Weight(g) Price
ADNGF-25-5-P-A 554229 205 USD40-50
ADNGF-25-10-P-A 554230 219 USD40-50
ADNGF-25-15-P-A 554231 233 USD40-50
ADNGF-25-20-P-A 554232 247 USD40-50
ADNGF-25-25-P-A 554233 261 USD40-50
ADNGF-25-30-P-A 554234 275 USD40-50
ADNGF-25-40-P-A 554235 303 USD40-50
ADNGF-25-50-P-A 554236 331 USD40-50
ADNGF-25-60-P-A 554237 359 USD40-50

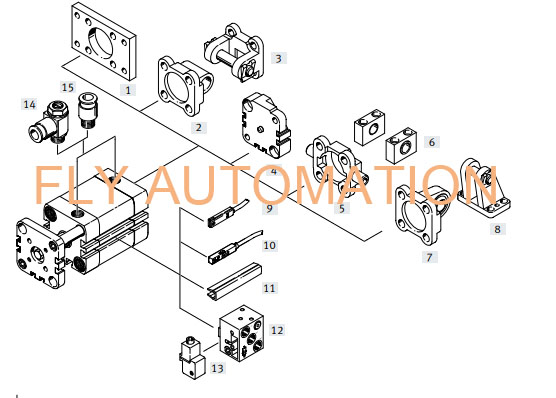

Peripherals overview

ADNGF-25-15-P-A 554231 Compact Pneumatic Cylinder GTIN4052568198589

ADNGF-25-15-P-A 554231 Compact Pneumatic Cylinder GTIN4052568198589

A wide range of products with excellent prices. Please hurry to me!
