FLY/AIRWOLF RCA5D2 Pilot Remote Control Pulse Jet Valves 1/4 " 5 mm 110 / 120 VAC 19 W

FLY/AIRWOLF RCA5D2 Pilot Remote Control Pulse Jet Valves 1/4 " 5 mm 110 / 120 VAC 19 W


PRODUCT DESCRIPTION
This product has been designed with a 4.76mm ( 3/16 " ) orifice and under the full range of voltages,
can operate all of FLY/AIRWOLF's current main valve assemblies used in reverse pulse cleaning systems.
Typical Applications
This type of pilot valve must be electrically protected by a customer supplied enclosure or via
FLY/AIRWOLF's range of pilot operated solenoid enclosures.
The pilot valve allows operation of the reverse pulse diaphragm valve from a remote position.
This may be required for maintenance purposes or for electrical protection.
PRINCIPLE OF OPERATION
Functionality
The pilot valve has the primary role of exhausting pressure air off the topside of a main
reverse pulse diaphragm valve, in a remote mounted position.
Flow Performance
The pilot valve orifice: 5 mm ( 3/16 " ) Flow Performance: 0.68 Cv / .58 kV
Pressure Range
Maximum Working Pressure: 860 kPa ( 125 psi )
Recommended Working Pressure:760 kPa ( 110 psi )
Minimum Working Pressure: 30 kPa ( 5 psi )
Temperature Rating
Working Temperature Range: -40 °C to 80 °C ( -40 °F to 176 ° F )
Fluid Media
Dry air or inert gas
Power Consumption & Duty Cycle:

Duty Cycle
Maximum coil "on time" : 500 milliseconds
Unit Weight
Fully built Pilot Valve unit:0.338 Kg ( .744 lbs )
Approvals Carried CSA
When used in multi-valve enclosures, used in NEMA 4 applications (standard models).
Standards Applicable CSA C22.2 No 30
Voltages and Solenoids
110/120 VAC 19 W
220 V 50 Hz 11 W
24 V DC 24 W
200/220 VAC 28 W
12 V DC 24 W
24 V 50 Hz 12 W
100/110 VAC 19 W
48 V DC 25 W
B2(screw connection) BR(Din connection)
Diaphragms and Seals
O rings Nitrile - Buna n
Connection Types
Pilot Inlet and Outlet connections:1/4" BSP T(RC) & 1/4" NPT
Solenoid
Coil type:B2 Purple Screwed
B2 Purple used in conduit entry enclosures IP31 Rated
BR Grey DIN Connected IP65 Rated
Insulation: Class B/130°C, self extinguishing Nylon 6
Pilot
Body and Ferrule retainer:Pressure Die Cast Aluminium
Ferrule tube:302 Stainless Steel
Port Sizes
Pilot Valves:1/4 " BSP T( RC), 1 / 4 " NPT
Electrical Connections
Coil: B2 Purple Screwed,
B2 Purple Screw terminal used in Conduit entry enclosures IP31 Rated
BR Grey DIN Connected IP65 Rated
Mounting Details
Individual pilot mounting hole size:19.3mm (0.760"), minimum wall thickness 1.5mm (0.062")
RCA Pilot Valves Fitted with Coils
Valve model number less coil –RCA5D0
Coil kit fitted to valve (ie 300) –530
For coils for FLY/AIRWOLF enclosure applications use B2 coil options below:
100/120V AC –530
220V 50 Hz –531
24V DC –532
200/220V AC –533
12V DC –534
24V 50 Hz –535
100/110V AC –536
48V DC –537

5D2 Pilot Valve
PRODUCT DESCRIPTION
This product has been designed with a 4.76mm (3/16") orifice and under the full range of voltages,
can operate all of FLY/AIRWOLF's current main valve assemblies used in reverse pulse cleaning systems.
Typical Applications
This type of pilot valve must be electrically protected by a customer supplied enclosure or via
FLY/AIRWOLF's range of pilot operated solenoid enclosures.
The pilot valve allows operation of the reverse pulse diaphragm valve from a remote position.
This may be required for maintenance purposes or for electrical protection.
PRINCIPLE OF OPERATION
Functionality
The pilot valve has the primary role of exhausting pressure air off the topside of a main
reverse pulse diaphragm valve, in a remote mounted position.
Flow Performance
The pilot valve orifice: 5 mm ( 3/16 " ) Flow Performance: 0.68 Cv/ .58 kV
Pressure Range
Maximum Working Pressure: 860 kPa (125 psi)
Recommended Working Pressure:760 kPa (110 psi)
Minimum Working Pressure: 30 kPa (5 psi)
Temperature Rating
Working Temperature Range: -40°C to 80°C ( -40°F to 176 °F)
Fluid Media
Dry air or inert gas
Power Consumption & Duty Cycle
Power consumption per operating coil:
110/120 VAC 19 W
220 V 50 Hz 11 W
24 V DC 24 W
200/220 VAC 28 W
12 V DC 24 W
24 V 50 Hz 12 W
100/110 VAC 19 W
48 V DC 25 W
Duty Cycle
Maximum coil "on time" : 500 milliseconds
Unit Weight
Fully built Pilot Valve unit:0.338 Kg (0.744 lbs)
Approvals Carried CSA
When used in multi-valve enclosures, used in NEMA 4 applications (standard models).
Standards Applicable CSA C22.2 No 30
Voltages and Solenoids
110/120 VAC 19 W
220 V 50 Hz 11 W
24 V DC 24 W
200/220 VAC 28 W
12 V DC 24 W
24 V 50 Hz 12 W
100/110 VAC 19 W
48 V DC 25 W
B2(screw connection) BR(Din connection)
Diaphragms and Seals
O rings Nitrile - Buna n
Connection Types
Pilot Inlet and Outlet connections:1/4" BSP T(RC) & 1/4" NPT
Solenoid
Coil type:B2 Purple Screwed
B2 Purple used in conduit entry enclosures IP31 Rated
BR Grey DIN Connected IP65 Rated
Insulation: Class B/130°C, self extinguishing Nylon 6
Pilot
Body and Ferrule retainer:Pressure Die Cast Aluminium
Ferrule tube:302 Stainless Steel
Port Sizes
Pilot Valves:1/4" BSP T( RC), 1/4" NPT
Electrical Connections
Coil: B2 Purple Screwed,
B2 Purple Screw terminal used in Conduit entry enclosures IP31 Rated
BR Grey DIN Connected IP65 Rated
Mounting Details
Individual pilot mounting hole size:19.3mm (0.760"), minimum wall thickness 1.5mm (0.062")
RCA Pilot Valves Fitted with Coils
Valve model number less coil –RCA5D0
Coil kit fitted to valve (ie 300) –530
For coils for FLY/AIRWOLF enclosure applications use B2 coil options below:

pulse solenoid valve

pulse jet valve

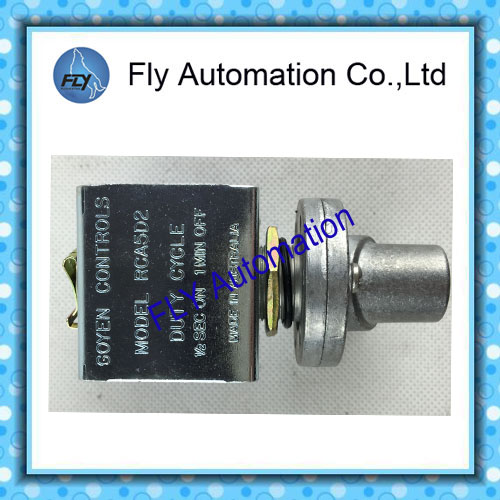

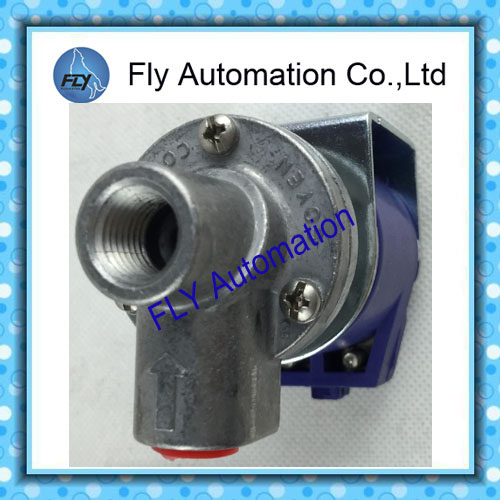

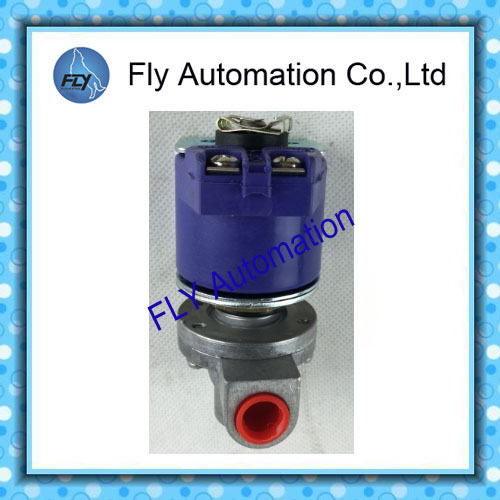

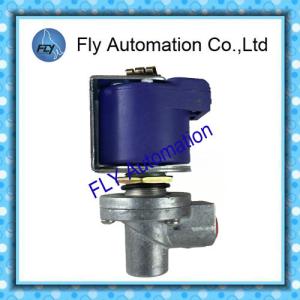

FLY/AIRWOLF RCA5D2 Pilot Remote Control Pulse Jet Valves 1/4 " 5 mm 110 / 120 VAC 19 W Images
