SMC series GMPM 20*30 Pneumatic Air Compact Guide Cylinder MGPM20G - 30Nil
Ordering Code: MGPM20G-30Nil, Any other types please contact freely.
Order code
Specifications
| Action | Double acting |
| Fluid | Air |
| Proof pressure | 1.5MPa |
| Max. operating pressure | 1.0MPa |
| Min. operating pressure | ø12, ø16 | 0.12MPa |
| ø20 to ø100 | 0.1MPa |
| Ambient and fluid temperature | –10 to 60° C (with no freezing) |
| Piston speed | ø12 to ø63 | 50 to 500mm/s |
| ø80, ø100 | 50 to 400mm/s |
| Cushion | Rubber bumper at both ends |
| Lubrication | Non-lube |
| Stroke length tolerance | 0~+1.5mm |
Manufacture of Intermediate Strokes
| Part number | Refer to standard part numbers and ordering procedure. | Indicate -XB10 at the end of the standard model
no. Refer to P.52 for order made specifications. |
Applicable
stroke
(mm) | ø12, ø16 | 1 to 249 | ø12, ø16 | 11 to 249 |
| ø20, ø25, ø32 | 1 to 399 | ø20, ø25 | 21 to 399 |
| ø40 to ø100 | 5 to 395 | ø32 to ø100 | 26 to 399 |
| Example | Part no.: MGPM20—39
A spacer 1mm in width is installed in a
MGPM20—40. C dimension is 77mm. | Part no.: MGPM20—39—XB10
Special body manufactured for 39mm
stroke. C dimension is 76mm. |
Installations
1.When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be cleared away before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust cap shall be ed into the inlet and outlet ports. As the precision of the manufacture and guide is high, never dismantle the fixed block or cylinder cover without permission.
7.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
8.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
Structures
1. ø12 to ø25/MGPM, MGPL
2. ø32 to ø63/MGPM, MGPL
3. ø80, ø100/MGPM, MGPL

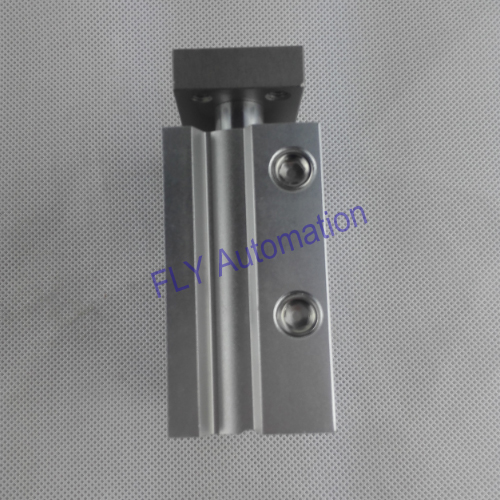

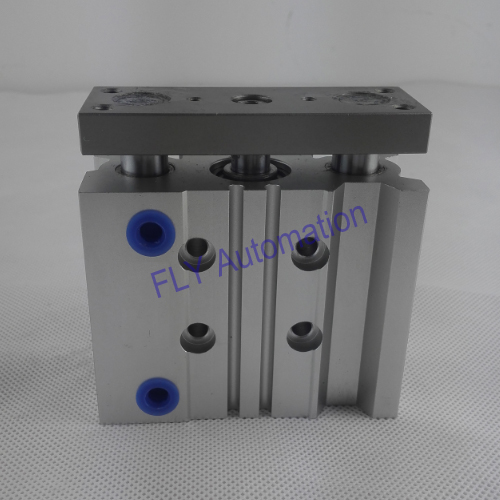

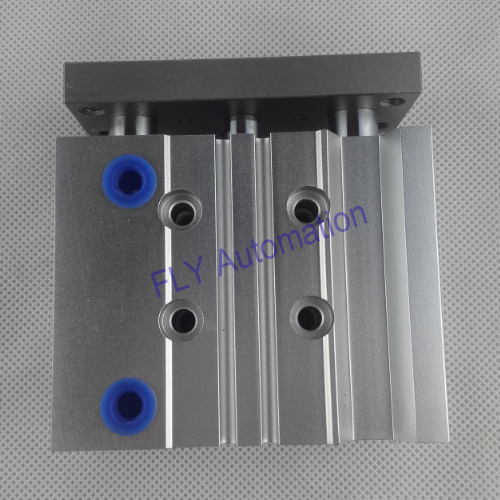

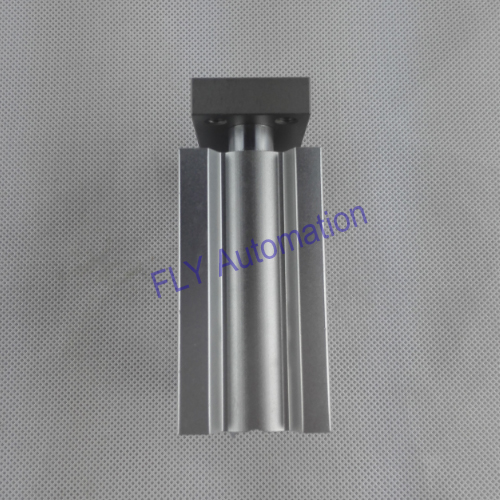

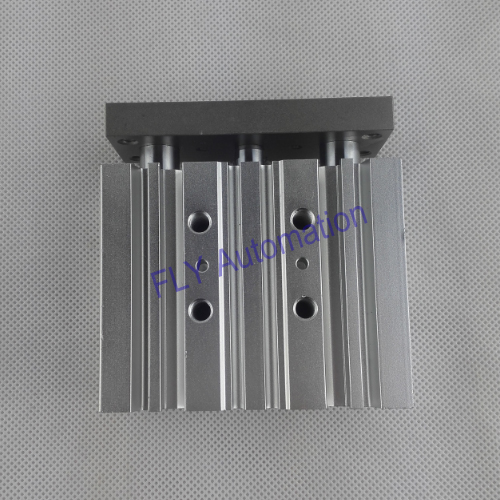

Product show
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Products Shopping Guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
Serves Time
0:00 - 23:59
From Monday to Sunday
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
