WATSON Pulse Jet Valve WPS-CA/TG76 T Type Female Thread Dust Collect Valve DN76
Technical Specifications:
(1). Working Pressure: 4-6 bar;
(2). Working medium: clean air
(3). Power supply: DC24V (AC220V/50Hz- 240V/60Hz)
(4). Class of protection: IP65;
(5). Working environment:
Normal-temperature diaphragm: -20OC- 80O C;
High-temperature diaphragm: 55℃ -180℃
The relative humidity of air is no more than 85%
FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give theunique operating features required for dust collector service applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded piping
• The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
• Integral pilot operated valves satisfy all relevant EC directives | Construction |
| Body | Aluminum |
| Core tube | Stainless steel |
| Core and Plugnut | Stainless steel |
| Core Spring | Stainless steel |
| Sealing & disc | CR (chloroprene) |
| Diaphragm | NBR(nitrile/buna-n) |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V,48V,110V,230V |
| Working Temperature | -20 to +85℃ |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |
SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.

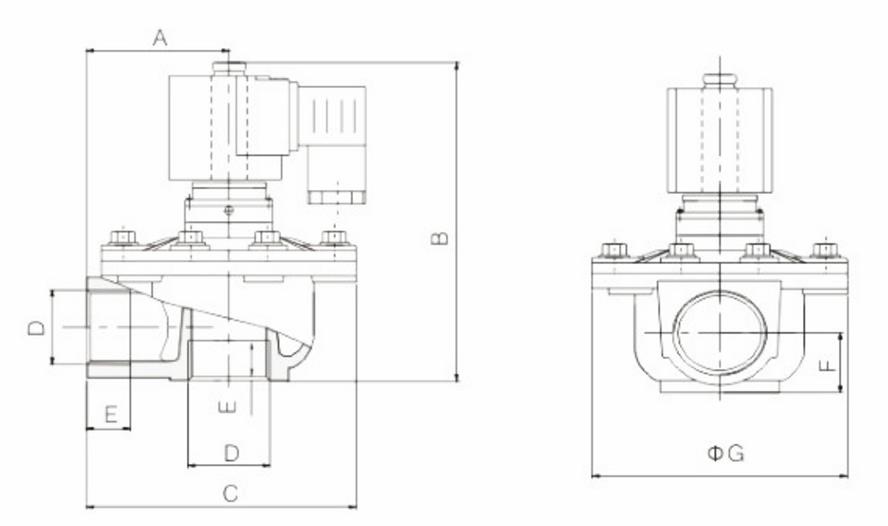

Drawings:

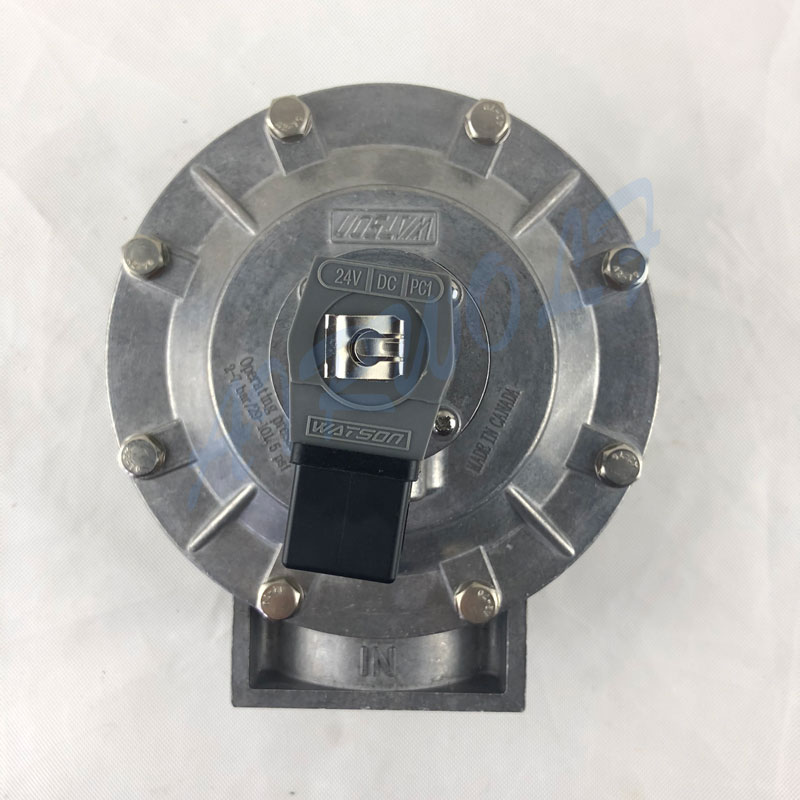

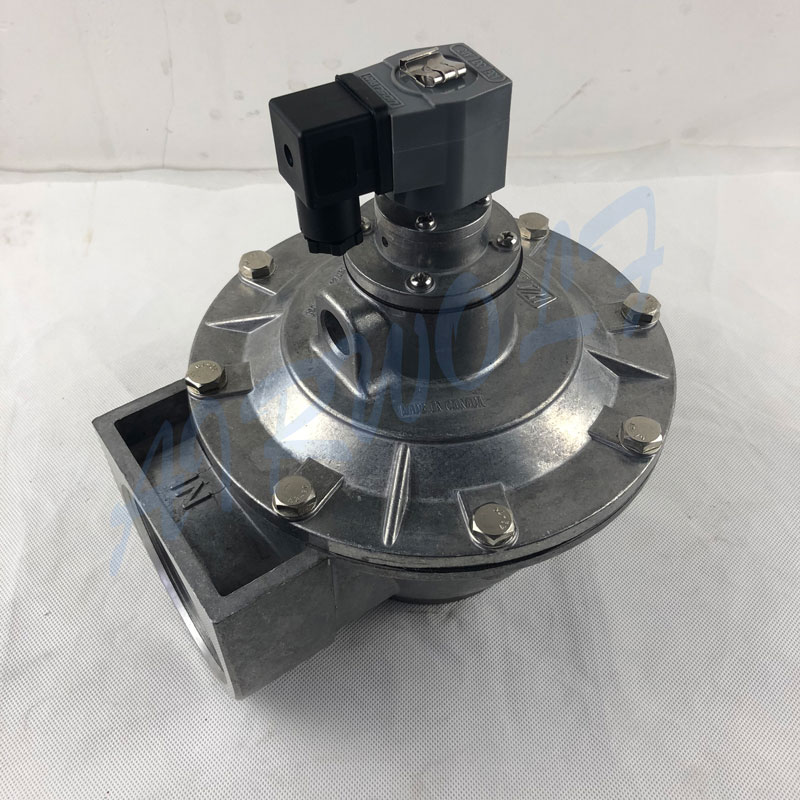

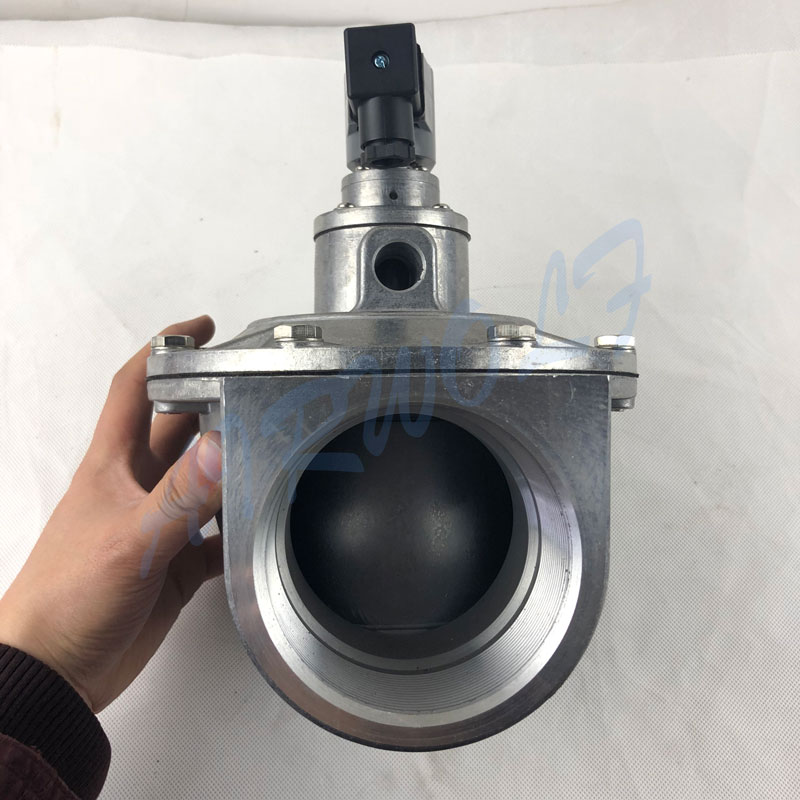

Pictures details:
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Product Tags:
|
|

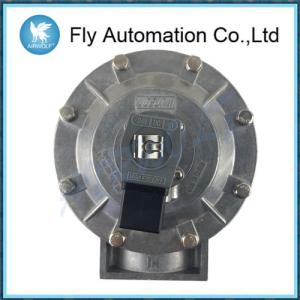

WATSON Pulse Jet Valves WPS-CA/TG76 T Type Female Thread AC220V DC24V Solenoid Valve DN76 Images
|
