SMC PS1000-R06L PS1100-R06L For Positive Pressure For Vacuum Air Checker Electronic Pressure Switch

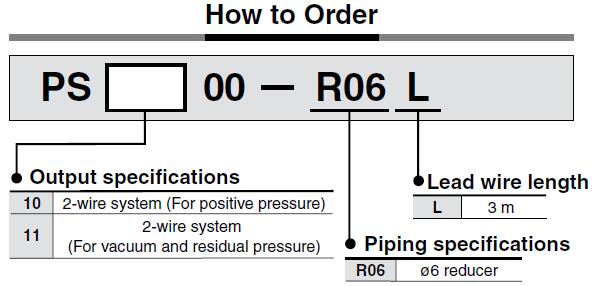

Order Code
Advantages
1. Small, lightweight electronic pressure switch
2. Extremely compact (1/3 size as compared to Series ZSE2)
13W x 10H x 30L (mm)
3. 2-wire type
Applicable to either NPN or PNP output.
4. Easy mounting
Plug-in port for One-touch fittings.
5. Wide calibration range
Calibration: –0.1 to 0.45 MPa is possible with one pressure switch.
6. High visibility
A large LED indicator for high visibility.
Specification:
| Model | PS1000-R06L | PS1100-R06L |
| Switch output | Present pres.≥Setting pres.: ON | Present pres.≤Setting pres.: ON |
Max. operating
pressure | 1 Mpa |
Regulating
pressure range | –0.1 to 0.45 Mpa | –0.1 to 0.4 Mpa |
| Fluid | Air/Non-corrosive gas |
| Indication light | ON: When red LED turns on |
Temperature
characteristics | ±3% F.S. or less |
| Repeatability | ±1% F.S. or less |
| Hysteresis | 4% F.S. |
| Load voltage | 12 to 24 VDC (Ripple ±10% or less) |
| Load current | 5 to 40 mA |
| Leakage | 1 mA or less |
| Int. voltage drop | 5 V or less |
Operating
temperature range | 0 to 60°C (With no condensation) |
Insulation
resistance | Between external terminals and case
2 MΩ (500 VDC by megameter) |
| Withstand voltage | Between external terminals and case
1000 VAC 50/60 Hz for 1 min. |
Vibration
resistance | 10 to 500 Hz Pulse width 1.5 mm or acceleration 98 m/s2
(at the smaller vibration) in X, Y, Z directions (2 hours) |
| Impact resistance | 980 m/s2 X, Y, Z directions (3 times for each direction) |
| Weight | 5 g (Excluding lead wire) |
| Port size | ø6 reducer |
| Enclosure | IP40 |
| Lead wire | Grommet oil-proof cabtire cord 2-wires ø2.55, 0.18 mm2, 3 m |

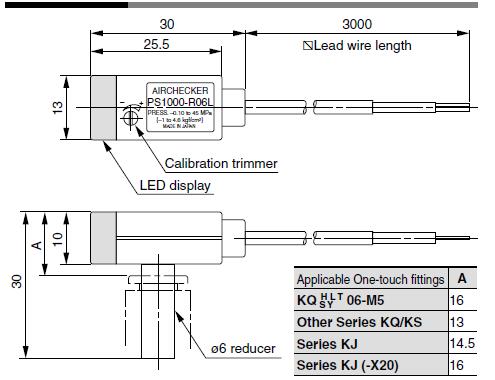

Drawings& Dimension:

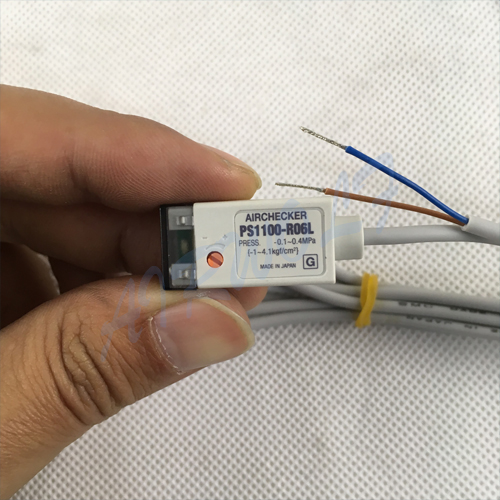

Pictures details:
Trimmer
Rotation angle of the trimmer is 220°. There is a stop provided to prevent the trimmer from rotating beyond its limits.
