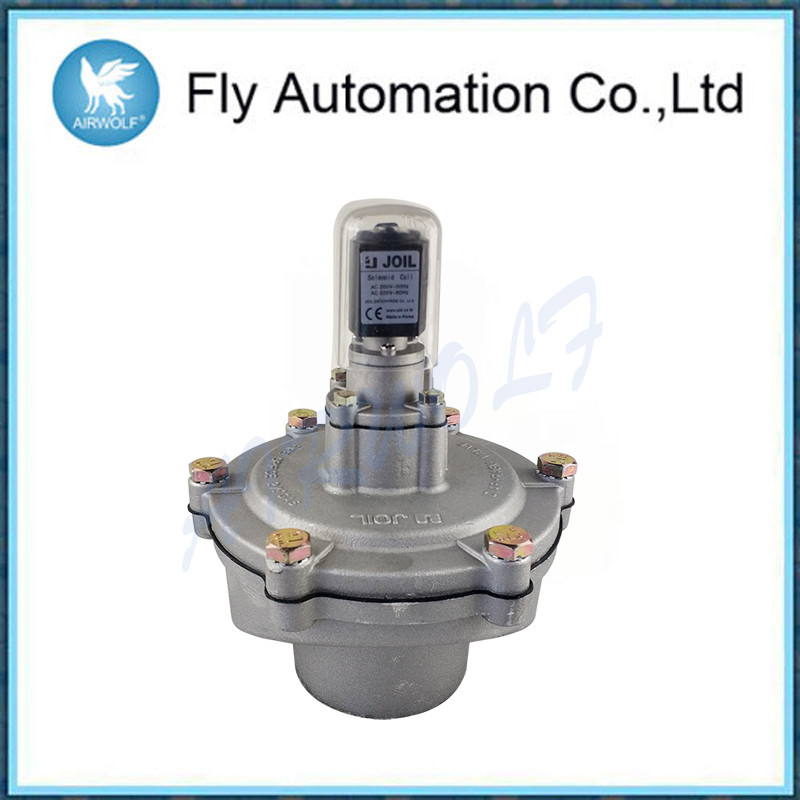

Joil Screw Integrated Type Valve JISI65 JISI40 Silvery Double Diaphragm 2-1/2" Pulse Valve
Description
It's a normal closed double diaphragm dust removal pulse valve. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, activating divided into two types:
Integrated: Electronic control type
Remote: Air control type
A full range of accessory items are available including pilots, coils, diaphragm, spring.
Specification
For outdoor use, use aluminum die-casting material body.
Diaphragm is manufactured with special nylon and synthetic rubber, so it is excellent even in any temperature and environment.
| MODEL | C.V
FACTOR | OPERATING PRESSURE | ORIFICE
A | B | C | D | E | F | G | H | I | Diaphragm
QTY | Weight
(kg) |
| MIN | MAX |
| JISI 20 | 14.3 | 0.5 | 8 | 3/4" | 19 | 82 | 50 | 117 | 64 | 14 | 35 | 70 | 1 | 0.5 |
| JISI 25 | 24.4 | 0.5 | 8 | 1" | 23 | 102 | 61.5 | 127.4 | 80 | 16 | 35 | 70 | 1 | 0.75 |
| JISI 32 | 47 | 0.5 | 8 | 1-1/4" | 29.5 | 130 | 76 | 144 | 121 | 18 | 35 | 70 | 1 | 1.15 |
| JISI 40(S) | 58.4 | 0.5 | 8 | 1-1/2" | 31.5 | 130 | 76 | 150 | 121 | 20 | 35 | 70 | 1 | 1.2 |
| JISI 40(D) | 60.9 | 0.5 | 8 | 1-1/2" | 31.5 | 130 | 76 | 186 | 121 | 20 | 35 | 70 | 2 | 1.4 |
| JISI 50 | 97.6 | 0.5 | 8 | 2" | 40 | 185 | 111 | 207.7 | 167 | 28 | 35 | 70 | 2 | 2.5 |
| JISI 65 | 145.4 | 0.5 | 8 | 2-1/2" | 48.5 | 210 | 125 | 223.7 | 190 | 28 | 35 | 70 | 2 | 3.6 |
| JISI 80 | 230.3 | 0.5 | 8 | 3" | 57.5 | 220 | 118 | 252.6 | 214 | 28 | 35 | 70 | 2 | 4.36 |
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
