0.35-0.85Mpa 2 " G353A048 Angle Type Body Pulse Jet Valves For Dust Collector Service

Name: 035085Mpa 2 quot G353A048 Angle Type Body Pulse Jet Valves For Dust Collector Service
Brand: or OEM
Price: 20 USD

Quality 0.35-0.85Mpa 2 " G353A048 Angle Type Body Pulse Jet Valves For Dust Collector Service wholesale

Place of Origin : China, USA

Brand Name : or OEM

Certification : ce

Model Number : G353A046,G353A048,G353A049,G353058

MOQ : 1 piece

Price : USD20-30

Packaging Details : Boxes, Cantons, Plastic bags

Delivery Time : within 1-30 working days after payment

Payment Terms : T/T in advance

Supply Ability : 1000 pcs

Contact Now

0.35-0.85Mpa 2 " G353A048 Angle Type Body Pulse Jet Valves For Dust Collector Service

FEATURES
•The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow,long life and extremely fast opening and closing to provide reliable and economical operation
•The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
•Integral compression fittings for fast, easy, secure installation
•Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD

pipe size	orifice size	flow coefficient Kv		operating pressure differential (bar)		catalogue number		OPTION FPM
				mln.	max. (PS)
					air
	(mm)	(m³/h)	(l/min)		-/=	standard	ATEX II2G/D
G - Threaded pipe connection
1 1/2	52	46	768	0,35	8,5	G353A046	G353A046 GD	V
2	66	77	1290	0,35	8,5	G353A048	G353A048 GD	V
2 1/2	66	92	1540	0,35	8,5	G353A049	G353A049 GD	V
3	76	170	2833	1,0	6,0	G353-058	G353-058 GD⑴	V

0.35-0.85Mpa 2 " G353A048 Angle Type Body Pulse Jet Valves For Dust Collector Service

catalogue number	A	B		C	D	E	F	G	H	weight
G353A046 (GD)	30	G	1/8"	71	130	136	G3/8"	90	120	1,10
G353A048 (GD)	30	G	1/4"	95	168	165	G3/4"	121	166	2,60
G353A049 (GD)	30	G	1/4"	95	168	165	G3/4"	121	166	2,30
G353-058 (GD)	48	G	1/4"	143	240	192	G1/2"	121	214	3,70
G353A063 (GD)	30	G	1/8"	87	177	136	G3/8"	96	183	1,43

Product Tags:

air pulse valve

pulse solenoid valve

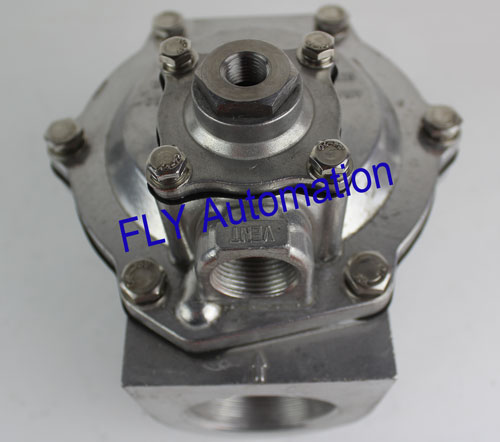

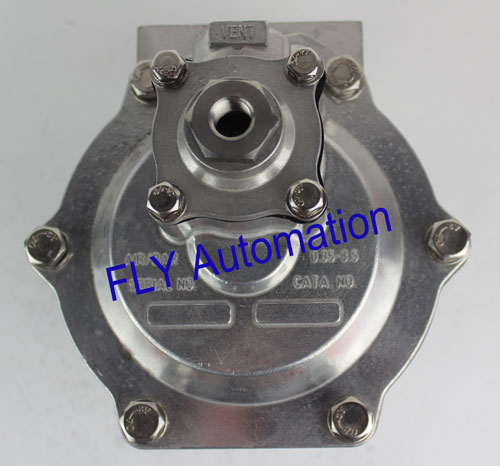

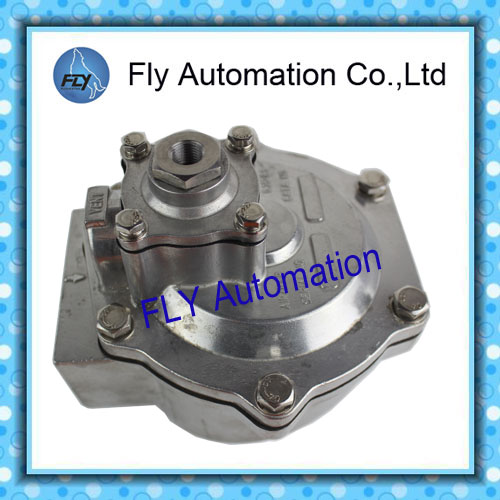

0.35-0.85Mpa 2 " G353A048 Angle Type Body Pulse Jet Valves For Dust Collector Service Images
