3/4" G353A041 Air Pulse Valve Diaphragm TPE Spring Stainless Steel

Name: 34quot G353A041 Air Pulse Valve Diaphragm TPE Spring Stainless Steel
Brand: or OEM
Price: 8 USD

Quality 3/4" G353A041 Air Pulse Valve Diaphragm TPE Spring Stainless Steel wholesale

Place of Origin : China, USA

Brand Name : or OEM

Certification : ce

Model Number : G353A041,G353A042

MOQ : 1 piece

Price : USD8-25

Packaging Details : Boxes, Cantons, Plastic bags

Delivery Time : within 1-30 working days after payment

Payment Terms : T/T in advance

Supply Ability : 1000 pcs

Contact Now

3/4" G353A041 Air Pulse Valve Diaphragm TPE Spring Stainless Steel

FEATURES
•The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow,long life and extremely fast opening and closing to provide reliable and economical operation
•The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
•Integral compression fittings for fast, easy, secure installation
•Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
Specifications:

pipe size	remote pilot connection	orifice size	flow coefficient Kv		operating pressure differential (bar)		catalogue number		option FPM
					min.	max. (PS)
						air
G	0B	(mm)				=	standard	ATEX II2G/D
G - Threaded pipe connection
3/4	1/8	24	14	233	0,35	8,5	G353A041	G353A041 GD	V
1	1/8	27	17	283	0,35	8,5	G353A042	G353A042 GD	V
1 1/2	1/4	52	46	768	0,35	8,5	G353A045	G353A045 GD	V
0 - Compression fitting pipe connection
3/4	1/8	24	14	233	0,35	8,5	G353-055	G353-055 GD	V
1	1/8	27	17	283	0,35	8,5	G353-056	G353-056 GD	V
1 1/2	1/4	52	43	717	0,35	8,5	G353-066	G353-066 GD	V

Body Aluminum
Spring Stainless Steel
Diaphragm TPE(thermoplastic polyester elastomer) or CR(chloroprene)

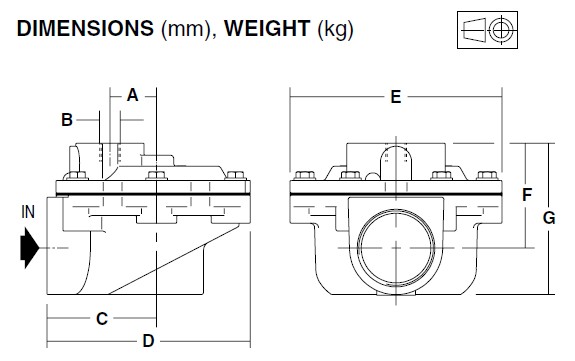

catalogue number	A	B	C	D	E	F	G	weight
G353A041 (GD)	-	G 1/8"	51	89	75	41	64	0,45
G353A042 (GD)	-	G 1/8"	51	89	75	41	64	0,40
G353A045 (GD)	30	G 1/4"	71	130	136	71	98	1,00
G353-055 (GD)	-	G 1/8"	88	125	75	47	109	0,58
G353-056 (GD)	-	G 1/8"	88	125	75	47	129	0,61
G353-066 (GD)	30	G 1/4"	117	177	136	73	161	1,33

3/4" G353A041 Air Pulse Valve Diaphragm TPE Spring Stainless Steel

catalogue number	A	B	C	D	E	F	G	weight
G353A041 (GD)	-	G 1/8"	51	89	75	41	64	0,45
G353A042 (GD)	-	G 1/8"	51	89	75	41	64	0,40
G353A045 (GD)	30	G 1/4"	71	130	136	71	98	1,00
G353-055 (GD)	-	G 1/8"	88	125	75	47	109	0,58
G353-056 (GD)	-	G 1/8"	88	125	75	47	129	0,61
G353-066 (GD)	30	G 1/4"	117	177	136	73	161	1,33

Product Tags:

pulse solenoid valve

pulse jet valve

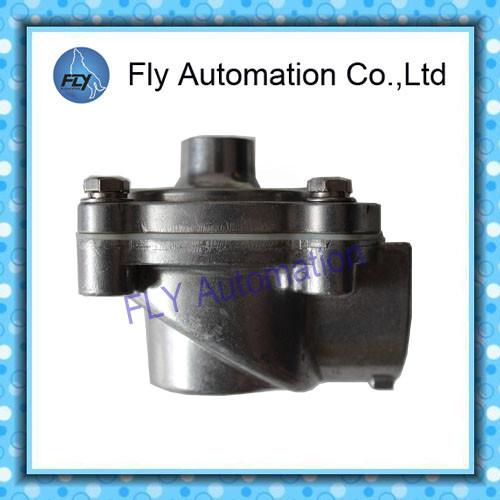

3/4" G353A041 Air Pulse Valve Diaphragm TPE Spring Stainless Steel Images
