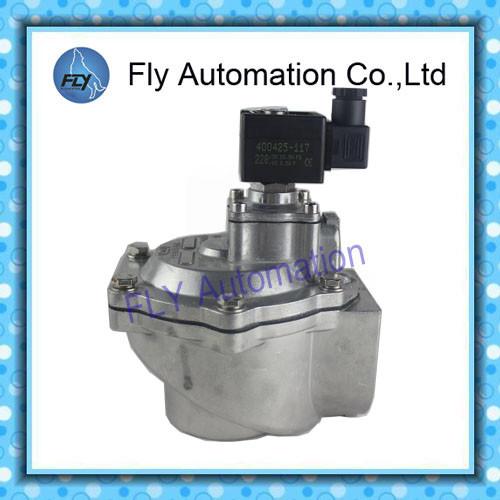

SCG353A050,8353G050 Pneumatic Air Pulse Jet Valves DIN43650A

Product Categories
FLY AUTOMATION
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SCG353A050,8353G050 Pneumatic Air Pulse Jet Valves DIN43650A

Place of Origin : China, USA

Brand Name : ,FLY

Certification : ce

Model Number : SCG353A050 ,8353G050

MOQ : 1 piece

Price : USD25-40

Packaging Details : Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement

Delivery Time : within 1-30 working days after payment

Payment Terms : T/T in advance,Paypal,Credit card

Supply Ability : 1000 pcs

Contact Now

SCG353A050, SCG353A051 Pneumatic Air Pulse Jet Valves DIN43650A

Ordering Code Port Size Orifice Flow Value Coil type
G Threaded mm m3/h l/min
SCG353A047 1 1/2" 52 46 768 400425
SCG353A050 2" 66 77 1290 400425
SCG353A051 2 1/2" 66 92 1540 400425
SCG353.060 3" 75 170 2833 400425

Construction
Body Aluminum
Core tube Stainless steel
Core and Plugnut Stainless steel
Core Spring Stainless steel
Sealing & disc NBR(nitrile/buna-n)
Diaphragm TPE(hytrel)
Shading coil Copper
Connector DIN43650A
Voltage DC: 24V, AC: 24V, 48V, 110V, 230V
Working Temperature -20 to +85℃
Protection Class IP65
Coil Insulation Class F
Working Pressure 0.35-0.85Mpa

SCG353A050,8353G050 Pneumatic Air Pulse Jet Valves DIN43650A

Ordering Code A B C D E F G H J K L Weight
SCG353A047 80 50 30 71 130 136 45 G 3/8" 131 160 178 1.40
SCG353A050 80 50 30 95 168 165 45 G 3/8" 165 210 227 2.90
SCG353A051 80 50 30 95 168 165 45 G 3/8" 165 210 227 2.60
SCG353.060 80 50 30 143 240 192 45 G 1/2" 165 258 275 4.10
